MAX3200T

MAXseries

MAX1600F
MAX1600T
MAX3200T

Production discontinued (May 29, 2020)
UL60950-1
C-UL (CSA60950-1)
EN60950-1
EN50178
Complies with DEN-AN (At only AC input)

Rated Input: AC170 - 264V 3Φ

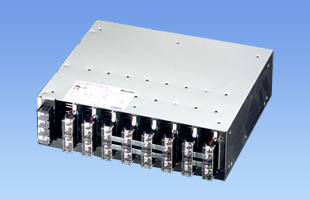

Rated Output Wattage: 3200W
Slots: 8
Rated Output Voltage: 2V,3.3V,5V,7.5V,12V,15V,18V,24V,28V

• Flexible modular system architecture provides various output configurations
• Harmonic attenuator (Complies with IEC61000-3-2) : MAX1600F
• Universal input voltage
• High power factor
• Various functions
• Remote ON/OFF control, alarm, parallel operation

Free warranty period 3-year

Technical features

Harness, Terminal Attachment, Fan unit

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

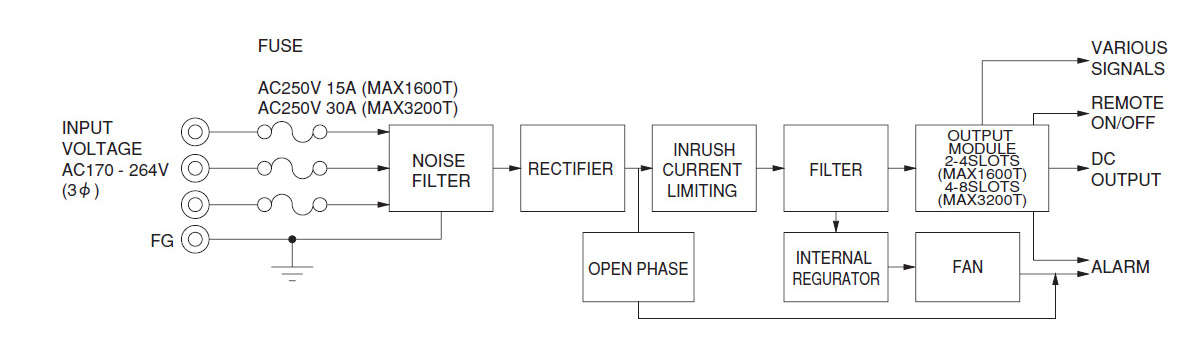

Block diagram

Safety certification

TAC-20-683
- Recommended products
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC
Three phase 500VAC　20A
General purpose
Low profile
High-attenuation type from 150kHz to 1MHz
1-stage filter

M1□⁽¹⁾ - □⁽⁶⁾ □⁽⁷⁾ □⁽⁸⁾ □⁽⁹⁾ - □□⁽¹⁰⁾ - □□⁽¹¹⁾

(1) Abbreviation type name of MAX series
M3T: MAX3200T
(2) Slot 8 Output module
(3) Slot 7 Output module
(4) Slot 6 Output module
(5) Slot 5 Output module
(6) Slot 4 Output module
(7) Slot 3 Output module
(8) Slot 2 Output module
(9) Slot 1 Output module
(10) Parallel code
(11) Series and option code
Refer to instruction manual

* The number of slot is different depending on the model.

Data sheet download

Input module

Item			Specification
Input voltage			AC 85 to 264 V single-phase or DC 120 to 350 V
Output	Number of slots		4
	Total maximum output power	AC 90 to 150 V	1500 W
	Total maximum output power	AC 170 to 264 V	1600 W
Operating temperature / humidity			-25 to +65°C, 20 to 90% RH (non-condensing)
Applicable standards	Safety standards		UL60950-1, C-UL (CSA60950-1), EN60950-1, EN50178 certified, Electrical Appliance and Material Safety Law compliant * (excluding DC input)
	Conducted emission (terminal voltage)		FCC-B, VCCI-B, CISPR22-B, EN55022-B compliant
	Harmonic current		IEC61000-3-2 compliant *
Construction	Dimensions (W × H × D)		200 × 97 × 300 mm
	Mass		7 kg max
	Cooling method		Forced air cooling (built-in fan)
Free warranty period			3 years
Technical data	Performance data
	Reliability data
	Estimated lifetime data
	Safety certification
	EMC data

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.

Catalog (including outline drawings)
Instruction manual

Output modules

Item		Specification
Module code		A	B	C	D	E	F	G	H	I
Slots used		1	1	1	1	1	1	1	1	1
Output	Power	160 W	264 W	400 W	405 W	408 W	405 W	396 W	408 W	406 W
	Voltage / current	2 V 80 A	3.3 V 80 A	5 V 80 A	7.5 V 54 A	12 V 34 A	15 V 27 A	18 V 22 A	24 V 17 A	28 V 14.5 A
	Voltage adjustment range	1.98 to 2.20 V	2.64 to 3.63 V	4.00 to 5.50 V	6.00 to 8.25 V	9.60 to 13.2 V	12.0 to 16.5 V	14.4 to 19.8 V	19.2 to 26.4 V	22.4 to 30.8 V
Built-in functions	Overcurrent protection	Activates at 105% min of rated current, automatic recovery.
	Overvoltage protection	4.00 to 5.50 V	4.00 to 5.50 V	5.75 to 7.00 V	8.63 to 10.5 V	13.8 to 16.8 V	17.25 to 21.0 V	20.7 to 25.2 V	27.6 to 33.6 V	32.2 to 39.2 V
	Remote control	Available
	Remote sensing	Available
	Other	—

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.
