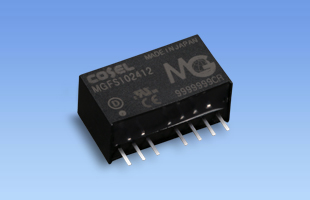

MGFS10

MGFSseries

Rated Input: DC9 - 36V, DC18 - 76V
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V,5V,12V,15V

• Industry Standard SIP8 size
• I/O isolation voltage DC1,500V (1 minute)

Free warranty period 10-year (Refer to Instruction Manuals)

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

MGF⁽¹⁾　S⁽²⁾　10⁽³⁾　24⁽⁴⁾　05⁽⁵⁾　-　□⁽⁶⁾　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
　Y2 : Output voltage adjustable (+10%, -5%)

Product		MGFS10243R3	MGFS102405	MGFS102412	MGFS102415	MGFS10483R3	MGFS104805	MGFS104812	MGFS104815
Input voltage		DC9 - 36V	DC9 - 36V	DC9 - 36V	DC9 - 36V	DC18 - 76V	DC18 - 76V	DC18 - 76V	DC18 - 76V
Output	Wattage	8.58W	10W	10.8W	10.5W	8.58W	10W	10.8W	10.5W
	Voltage・Current	3.3V 2.6A	5V 2A	12V 0.9A	15V 0.7A	3.3V 2.6A	5V 2A	12V 0.9A	15V 0.7A
	Voltage variable range	-	-	-	-	-	-	-	-
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1
Structure	External dimensions (W×H×D)	22.0x12.0x9.5mm [0.87x0.48x0.38 inches]
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
