MGSseries

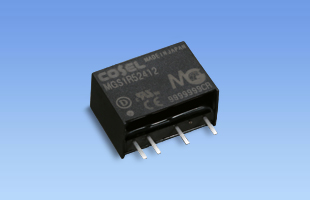

MGS1R5

  • Recommended products
  • UL60950-1
  • C-UL
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: 3.3V,5V,12V,15V

• Industry Standard SIP6 size
• I/O isolation voltage DC1,500V (1 minute)

Free warranty period 10-year (Refer to Instruction Manuals)

Technical features

  • Remote Control
  • SIP type
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MG(1)　S(2)　1R5(3)　24(4)　05(5)　-　□(6)　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
　Y2 : Output voltage adjustable (+10%, -5%)
Catalog download

MGS1R5 specifications (overview)

Product MGS1R5053R3 MGS1R50505 MGS1R50512 MGS1R50515 MGS1R5123R3 MGS1R51205 MGS1R51212 MGS1R51215 MGS1R5243R3 MGS1R52405 MGS1R52412 MGS1R52415 MGS1R5483R3 MGS1R54805 MGS1R54812 MGS1R54815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W
Voltage・Current 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A
Voltage variable range - - - - - - - - - - - - - - - -
Applicable standards Safety Certifications UL60950-1, C-UL, EN62368-1
Structure External dimensions (W×H×D) 17.0x12.0x8.5mm [0.67x0.48x0.34 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
