MGSseries

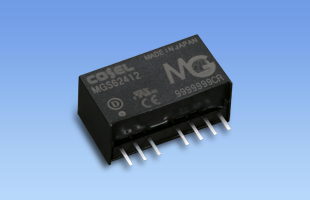

MGS6

  • Recommended products
  • UL60950-1
  • C-UL
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 6W
Rated Output Voltage: 3.3V,5V,12V,15V

• Industry Standard SIP8 size
• I/O isolation voltage DC1,500V (1 minute)
• Built-in remote ON/OFF
• Output voltage adjustability by external variable resistor

Free warranty period 10-year (Refer to Instruction Manuals)

Technical features

  • Remote Control
  • SIP type
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MG(1)　S(2)　6(3)　24(4)　05(5)　-　□(6)　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
　Y2 : Output voltage adjustable (+10%, -5%)
Catalog download

MGS6 specifications (overview)

Product MGS6053R3 MGS60505 MGS60512 MGS60515 MGS6123R3 MGS61205 MGS61212 MGS61215 MGS6243R3 MGS62405 MGS62412 MGS62415 MGS6483R3 MGS64805 MGS64812 MGS64815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 5.28W 6W 6W 6W 5.28W 6W 6W 6W 5.28W 6W 6W 6W 5.28W 6W 6W 6W
Voltage・Current 3.3V 1.6A 5V 1.2A 12V 0.5A 15V 0.4A 3.3V 1.6A 5V 1.2A 12V 0.5A 15V 0.4A 3.3V 1.6A 5V 1.2A 12V 0.5A 15V 0.4A 3.3V 1.6A 5V 1.2A 12V 0.5A 15V 0.4A
Voltage variable range - - - - - - - - - - - - - - - -
Applicable standards Safety Certifications UL60950-1, C-UL, EN62368-1
Structure External dimensions (W×H×D) 22.0x12.0x9.5mm [0.87x0.48x0.38 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
