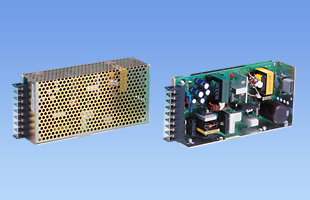

MMC100B

MMCseries

MMC8A
MMC50A
MMC75B
MMC100B

Production discontinued (March 31, 2017)
UL60950-1
C-UL Complies with DEN-AN

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 100W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V,
+5V/+12V/-5V,+5V/+12V/-12V

• Built-in inrush current and overcurrent and overvoltage (MMC50A, 75B, 100B) protection circuits
• V1 isolated from V2 and V3
• All three output fully regulated

Free warranty period 2-year

Technical features

Attachment for Replacement, Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

MMC⁽¹⁾ 100B⁽²⁾ - 1⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Output voltage combination
(4) Optional
C: with Coating
G: Low leakage current
J: Connector type
N: with Cover

Data sheet download

MMC100B specifications (overview)

Product		MMC100B-1	MMC100B-2	MMC100B-3	MMC100B-4
Input voltage		AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V
Output	Wattage	101W	102.5W	94W	100W
	Voltage・Current	V1 :+5V 13.0A V2 :+12V 2.0A V3 :-12V 1.0A	V1 :+5V 13.0A V2 :+15V 1.5A V3 :-15V 1.0A	V1 :+5V 13.0A V2 :+12V 2.0A V3 :-5V 1.0A	V1 :+5V 8.0A V2 :+12V 4.0A V3 :-12V 1.0A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, C-UL Complies with DEN-AN
Structure	External dimensions (W×H×D)	50x93x190mm (without terminal block and screw)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
