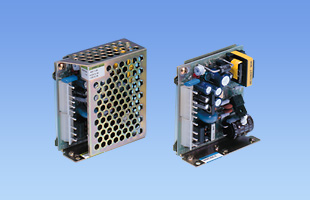

MMC8A

MMCseries

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 8W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V,+5V/+12V/-5V

• Built-in inrush current and overcurrent protection circuits
• V1 isolated from V2 and V3
• All three output fully regulated

Free warranty period 2-year

DIN Rail Attachment Plate, Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

MMC⁽¹⁾ 8A⁽²⁾ - 1⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Output voltage combination
(4) Optional
G: Low leakage current
N: with Cover

Product		MMC8A-1	MMC8A-2	MMC8A-3
Input voltage		AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V
Output	Wattage	8.4W	8.5W	7.7W
	Voltage・Current	V1 :+5V 1.2A V2 :+12V 0.1A V3 :-12V 0.1A	V1 :+5V 1.1A V2 :+15V 0.1A V3 :-15V 0.1A	V1 :+5V 1.2A V2 :+12V 0.1A V3 :-5V 0.1A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, C-UL Complies with DEN-AN
Structure	External dimensions (W×H×D)	27x74x685mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
