MUSseries

MUS10

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V, 5V, 12V, 15V
• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Release year: 2025

What's great about the MUS series?

Low-profile, compact DC-DC converters.
A wide lineup with extensive variations provides greater design flexibility.
The low-profile, space-saving design contributes to equipment miniaturization.

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Packaging Tray
P-MU6-1 Tray for MUS6, MUW6, MUS10, MUW10. PDF download -
P-MU6-2 Tray for MUS6, MUW6, MUS10, MUW10. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

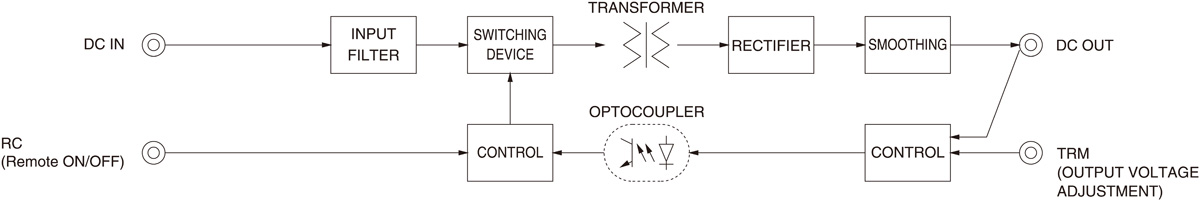

Block diagram

/tool/tag/fig/e_blo_mus10.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MU(1)　S(2)　10(3)　12(4)　05(5)　B(6)　-　□(7)　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
　  B: SMD
　  C: DIP
(7) Optional
　  G: Capacitor between Input and Output is removed.
Data sheet download Instruction manual

MUS10 specifications (overview)

Product MUS10053R3 MUS100505 MUS100512 MUS100515 MUS10123R3 MUS101205 MUS101212 MUS101215 MUS10243R3 MUS102405 MUS102412 MUS102415 MUS10483R3 MUS104805 MUS104812 MUS104815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 8.58W 10W 10.8W 10.5W 8.58W 10W 10.8W 10.5W 8.58W 10W 10.8W 10.5W 8.58W 10W 10.8W 10.5W
Voltage・Current 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A
Voltage variable range Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 24.0x8.5x17.3mm
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
