MUSseries

MUS1R5

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: 3.3V, 5V, 12V, 15V

• SMD mounting type and through-hole mounting type
• Built-in remote ON/OFF (MU3, 6, 10, 15, 30)

Free warranty period 5-year

Release year: 2025

What's great about the MUS series?

Low-profile, compact DC-DC converters.
A wide lineup with extensive variations provides greater design flexibility.
The low-profile, space-saving design contributes to equipment miniaturization.

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Packaging Tray
P-MU1R5-1 Tray for MUS1R5, MUW1R5, MUS3, MUW3. PDF download -
P-MU1R5-2 Tray for MUS1R5, MUW1R5, MUS3, MUW3. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

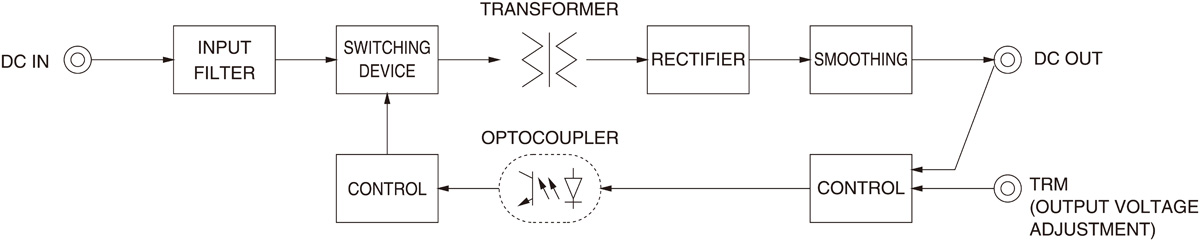

Block diagram

/tool/tag/fig/e_blo_mus1r5.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MU(1)　S(2)　1R5(3)　12(4)　05(5)　B(6)　-　□(7)　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
　  B: SMD
　  C: DIP
(7) Optional
　  G: Capacitor between Input and Output is removed.
Data sheet download Instruction manual

MUS1R5 specifications (overview)

Product MUS1R5053R3 MUS1R50505 MUS1R50512 MUS1R50515 MUS1R5123R3 MUS1R51205 MUS1R51212 MUS1R51215 MUS1R5243R3 MUS1R52405 MUS1R52412 MUS1R52415 MUS1R5483R3 MUS1R54805 MUS1R54812 MUS1R54815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W
Voltage・Current 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A
Voltage variable range Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 21.4x8.5x13.4mm
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
