MUSseries

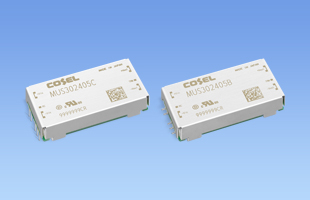

MUS30

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC18 - 36V, DC36 - 76V
Rated Output Wattage: 30W
Rated Output Voltage: 3.3V, 5V, 12V, 15V
• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF
• Built-in overvoltage protection circuits
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Release year: 2026

What's great about the MUS series?

Low-profile, compact DC-DC converters.
A wide lineup with extensive variations provides greater design flexibility.
The low-profile, space-saving design contributes to equipment miniaturization.

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

/tool/tag/fig/e_blo_mus15.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MU(1)　S(2)　30(3)　24(4)　05(5)　B(6)　-　□(7)　

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
　  B: SMD
　  C: DIP
(7) Optional
Data sheet download Instruction manual

MUS30 specifications (overview)

Product MUS30243R3 MUS302405 MUS302412 MUS302415 MUS30483R3 MUS304805 MUS304812 MUS304815
Input voltage DC18 ～ 36V DC18 ～ 36V DC18 ～ 36V DC18 ～ 36V DC36 ～ 76V DC36 ～ 76V DC36 ～ 76V DC36 ～ 76V
Output Wattage 29.7W 30W 30W 30W 29.7W 30W 30W 30W
Voltage・Current 3.3V 9A 5V 6A 12V 2.5A 15V 2A 3.3V 9A 5V 6A 12V 2.5A 15V 2A
Voltage variable range Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 40.2×9.2×22.0mm
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
