Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5 - 3W
• SMD mounting type and through-hole mounting type
• Built-in remote ON/OFF (MU3,6,10)
Free warranty period 5--year

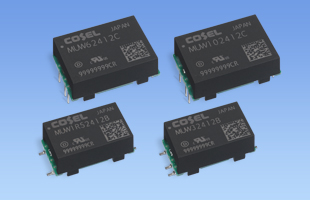

Low-profile, compact DC-DC converters.
Featuring a wide lineup from 1.5W to 10W across 96 models, offering extensive variations to significantly enhance design flexibility.
The low-profile and space-saving design contributes to equipment miniaturization.
| Model | Output Wattage | Rated Input | Output Voltage | Safety Certifications | Cooling method |
|---|---|---|---|---|---|
| 1.5W | DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V | ±12V (+24) , ±15V (+30) |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
EN62368-1
|
Convection
|
|
| 3W | DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V | ±12V (+24) , ±15V (+30) |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
EN62368-1
|
Convection
|
|
| 6W | DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V | ±12V (+24) , ±15V (+30) |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
EN62368-1
|
Convection
|
|
| 10W | DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V | ±12V (+24) , ±15V (+30) |
UL62368-1
C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
EN62368-1
|
Convection
|
