MUWseries

MUW1R5

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: ±12V (+24) , ±15V (+30)

• SMD mounting type and through-hole mounting type
• Built-in remote ON/OFF (MU3,6,10)

Free warranty period 5-year

What's great about the MUW series?

Low-profile, compact DC-DC converters.
Featuring a wide lineup from 1.5W to 10W across 96 models, offering extensive variations to significantly enhance design flexibility.
The low-profile and space-saving design contributes to equipment miniaturization.

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

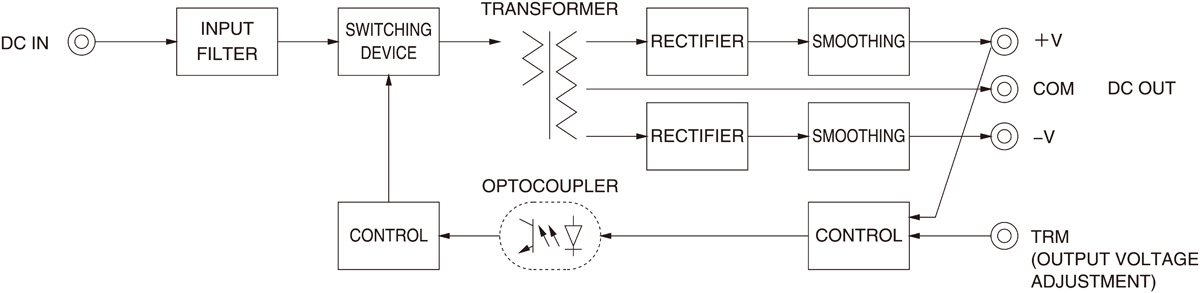

Block diagram

/tool/tag/fig/e_blo_muw1r5.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MU(1)　W(2)　1R5(3)　12(4)　12(5)　B(6)　-　□(7)　

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
　  B: SMD
　  C: DIP
(7) Optional
　  G: Capacitor between Input and Output is removed.
Catalog download

MUW1R5 specifications (overview)

Product MUW1R50512 MUW1R50515 MUW1R51212 MUW1R51215 MUW1R52412 MUW1R52415 MUW1R54812 MUW1R54815
Input voltage DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Wattage 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W
Voltage・Current ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A
Voltage variable range Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 21.4x8.5x13.4mm
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
