MUWseries

MUW6

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 6W
Rated Output Voltage: ±12V (+24) , ±15V (+30)
• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF
• High reliability: not built-in aluminum and tantalum electrolytic capacitor+AG9

Free warranty period 5-year

What's great about the MUW series?

Low-profile, compact DC-DC converters.
Featuring a wide lineup from 1.5W to 10W across 96 models, offering extensive variations to significantly enhance design flexibility.
The low-profile and space-saving design contributes to equipment miniaturization.

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

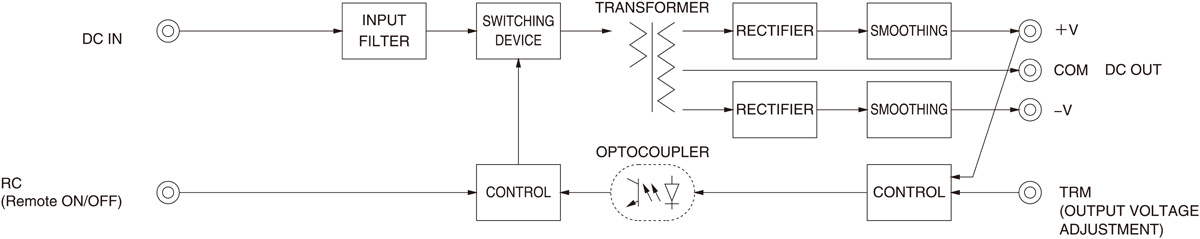

Block diagram

/tool/tag/fig/e_blo_muw6.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

MU(1)　W(2)　6(3)　12(4)　12(5)　B(6)　-　□(7)　

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
　  B: SMD
　  C: DIP
(7) Optional
　  G: Capacitor between Input and Output is removed.
Data sheet download

MUW6 specifications (overview)

Product MUW60512 MUW60515 MUW61212 MUW61215 MUW62412 MUW62415 MUW64812 MUW64815
Input voltage DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Wattage 6W 6W 6W 6W 6W 6W 6W 6W
Voltage・Current ±12V（+24V） 0.25A ±15V（+30V） 0.2A ±12V（+24V） 0.25A ±15V（+30V） 0.2A ±12V（+24V） 0.25A ±15V（+30V） 0.2A ±12V（+24V） 0.25A ±15V（+30V） 0.2A
Voltage variable range Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR Fixed (TRM pin open) +10%, -5% adjustable by external VR
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1
Structure External dimensions (W×H×D) 24.0x8.5x17.3mm
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
