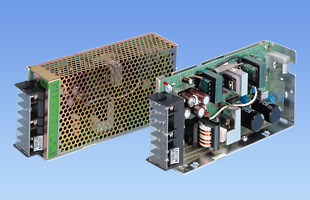

P100

Pseries

Production discontinued (November 30, 2011)

Discontinued : 2011,Nov.
Rated Input: AC85 - 132V/170 - 264V 1Φ
Rated Output Wattage: 100W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

P⁽¹⁾ 100⁽²⁾ E⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  N: with Cover

Data sheet download

P100 specifications (overview)

Product		P100-5	P100E-5	P100-9	P100-12	P100E-12	P100-15	P100E-15	P100-18	P100-24	P100E-24	P100-30	P100-48
Input voltage
Output	Wattage	100W	100W	100.8W	102W	102W	105W	105W	100.8W	108W	108W	99W	100.8W
	Voltage・Current	5V 20A	5V 20A	9V 11.2A	12V 8.5A	12V 8.5A	15V 7A	15V 7A	18V 5.6A	24V 4.5A	24V 4.5A	30V 3.3A	48V 2.1A
	Voltage variable range
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)
Structure	Cooling method
Technical data	Characteristic data	-	-	-	-	-	-	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
