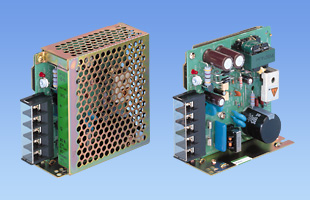

P15

Pseries

Production discontinued (November 30, 2011)

Discontinued : 2011,Nov.
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 15W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF
Replacement
Replacement	F-PPBA15-1	Attachment plate for replacement to PBA series from P, PAA series.	PDF download	DXF download

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

P⁽¹⁾ 15⁽²⁾ E⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover

Data sheet download

P15 specifications (overview)

Product		P15-5	P15E-5	P15-9	P15E-9	P15-12	P15E-12	P15-15	P15E-15	P15-18	P15E-18	P15-24	P15E-24	P15-30	P15E-30	P15-48	P15E-48
Input voltage
Output	Wattage	15W	15W	15.3W	15.3W	15.6W	15.6W	15W	15W	16.2W	16.2W	16.8W	16.8W	15W	15W	16.8W	16.8W
	Voltage・Current	5V 3A	5V 3A	9V 1.7A	9V 1.7A	12V 1.3A	12V 1.3A	15V 1A	15V 1A	18V 0.9A	18V 0.9A	24V 0.7A	24V 0.7A	30V 0.5A	30V 0.5A	48V 0.35A	48V 0.35A
	Voltage variable range
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)
Structure	Cooling method
Technical data	Characteristic data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
