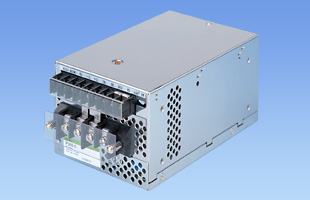

P300

Pseries

Production discontinued (November 30, 2011)

Discontinued : 2011,Nov.
Rated Input: AC85 - 132V/170 - 264V 1Φ
Rated Output Wattage: 300W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

P⁽¹⁾ 300⁽²⁾ E⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  R: Positive logic control

Data sheet download

P300 specifications (overview)

Product		P300-5	P300E-5	P300-12	P300E-12	P300E-15	P300-15	P300-18	P300E-18	P300-24	P300E-24	P300-30	P300E-30	P300E-48	P300-48
Input voltage
Output	Wattage	300W	300W	324W	324W	330W	330W	306W	306W	336W	336W	300W	300W	312W	312W
	Voltage・Current	5V 60A	5V 60A	12V 27A	12V 27A	15V 22A	15V 22A	18V 17A	18V 17A	24V 14A	24V 14A	30V 10A	30V 10A	48V 6.5A	48V 6.5A
	Voltage variable range
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)
Structure	Cooling method
Technical data	Characteristic data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-	-	-	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
