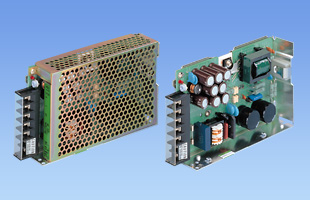

P50

Pseries

Production discontinued (November 30, 2011)

Discontinued : 2011,Nov.
Rated Input: AC85 - 132V/170 - 264V 1Φ
Rated Output Wattage: 50W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF
Replacement
Replacement	F-PPBA50-1	Attachment plate for replacement to PBA series from P, PAA series.	PDF download	DXF download

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

P⁽¹⁾ 50⁽²⁾ E⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover

Data sheet download

P50 specifications (overview)

Product		P50-5	P50E-5	P50-9	P50E-9	P50-12	P50E-12	P50-15	P50E-15	P50-18	P50E-18	P50-24	P50E-24	P50-30	P50E-30	P50-48	P50E-48
Input voltage
Output	Wattage	50W	50W	49.5W	49.5W	50.4W	50.4W	51W	51W	50.4W	50.4W	50.4W	50.4W	51W	51W	48W	48W
	Voltage・Current	5V 10A	5V 10A	9V 5.5A	9V 5.5A	12V 4.2A	12V 4.2A	15V 3.4A	15V 3.4A	18V 2.8A	18V 2.8A	24V 2.1A	24V 2.1A	30V 1.7A	30V 1.7A	48V 1.0A	48V 1.0A
	Voltage variable range
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)
Structure	Cooling method
Technical data	Characteristic data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
