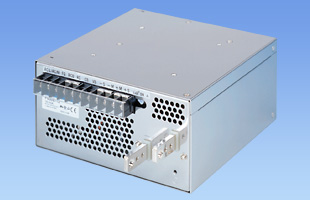

P600

Pseries

Production discontinued (November 30, 2011)

Discontinued : 2011,Nov.
Rated Input: AC85 - 132V/170 - 264V 1Φ
Rated Output Wattage: 600W

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

P⁽¹⁾ 600⁽²⁾ E⁽³⁾ - 5⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage
(5) Optional
  C: with Coating
  G: Low leakage current
  R: Positive logic control

Data sheet download

P600 specifications (overview)

Product		P600-5	P600E-5	P600-12	P600E-12	P600-15	P600E-15	P600-18	P600E-18	P600-24	P600E-24	P600-30	P600E-30	P600-48	P600E-48
Input voltage
Output	Wattage	600W	600W	636W	636W	645W	645W	612W	612W	648W	648W	600W	600W	624W	624W
	Voltage・Current	5V 120A	5V 120A	12V 53A	12V 53A	15V 43A	15V 43A	18V 34A	18V 34A	24V 27A	24V 27A	30V 20A	30V 20A	48V 13A	48V 13A
	Voltage variable range
Applicable standards	Safety Certifications
Structure	External dimensions (W×H×D)
Structure	Cooling method
Technical data	Characteristic data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	Reliability	-
	MTBF	-	-	-	-	-	-	-	-	-	-	-	-	-	-

* For further information and how to use, please see in Cosel product catalog.
