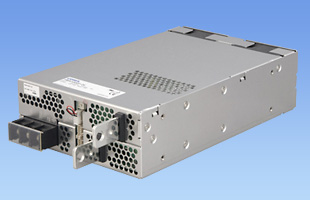

PBA1000F

PBAseries

Active (NRND)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1000W
Rated Output Voltage: 3.3V,5V,7.5V,12V,15V,24V,36V,48V

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Complies with the SEMIF47 standard(Refer to instruction manual)
• Wide product lineup ranging from 10 W to 1500 W

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

<p>Harness, Insulated tube</p>

Type	Model number	Description	PDF	DXF
Fan unit
	FAN-PB10	Fan unit for PBA1000F. (Standard model)	PDF download	-
	FAN-PB10-F1	Fan unit for PBA1000F. (F1 option : Long life fan)	PDF download	-
	FAN-PB10-F3	Fan unit for PBA1000F. (F3 option : Reversed air flow)	PDF download	-
	FAN-PB10-F4	Fan unit for PBA1000F. (F4 option : Lower speed fan)	PDF download	-
Harness
	H-PA-3	Harness for parallel operation.	PDF download	-
	H-SN-20	Harness for using all functions of CN1 and CN2.	PDF download	-
	H-SN-21	Harness for using all functions except remote sensing of CN2.	PDF download	-
	H-SN-22	Harness for using all functions of CN3.	PDF download	-
	H-SN-24	Harness for using example remote ON/OFF circuit C.	PDF download	-
Insulated tube
	T-PBA1500-1	Insulation tube for output terminal base.	PDF download	-
	T-PBA1500-2	Insulation tube for output terminal base.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-20-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 20A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJA1000F
- Recommended products
- UL62368-1
- C-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1000W
Rated Output Voltage: 12V,15V,24V,36V,48V
PCA1000F
- New Product
- Recommended products
- UL62368-1
- C-UL（CSA62368-1）
- EN62368-1
- ANSI/AAMI ES60601-1
- EN60601-1 3rd*
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 1000W
Rated Output Voltage:5V,12V,15V,24V,32V,48V

PB⁽¹⁾ A⁽²⁾ 1000⁽³⁾ F⁽⁴⁾ - 5⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  U: Operation stop voltage is set at a lower value
  F1: With Long-Life fan
  F3: Reverse air exhaust type
  F4: Low speed fan

Refer to instruction manual 7.1.

Data sheet download

PBA1000F specifications (overview)

Product		PBA1000F-3R3	PBA1000F-5	PBA1000F-7R5	PBA1000F-12	PBA1000F-15	PBA1000F-24	PBA1000F-36	PBA1000F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *
Output	Wattage	660W	1000W	1005W	1056W	1050W	1056W	1044W	1056W
	Voltage・Current	3.3V 200A	5V 200A	7.5V 134A	12V 88A	15V 70A	24V 44A ACIN 100V 24V 44 (51) A ACIN 200V	36V 29A	48V 22A
	Voltage variable range	2.64 - 3.96V	3.96 - 6.00V	5.25 - 8.25V	8.25 - 13.20V	10.50 - 16.50V	16.50 - 26.40V	25.20 - 39.60V	38.40 - 56.00V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	150x61x240mm [5.91x2.4x9.45 inches] (without terminal block and screw)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
