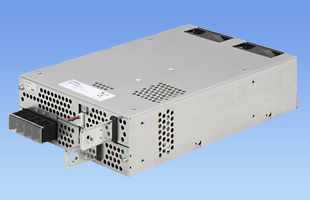

PBA1500F

PBAseries

Active (NRND)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1500W
Rated Output Voltage: 3.3V,5V,7.5V,12V,15V,24V,36V,48V

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Complies with the SEMIF47 standard(Refer to instruction manual)
• Wide product lineup ranging from 10 W to 1500 W

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

<p>Harness, Insulated tube</p>

Type	Model number	Description	PDF	DXF
Fan unit
	FAN-PB15	Fan unit for PBA1500F. (Standard model)	PDF download	-
	FAN-PB15-F1	Fan unit for PBA1500F. (F1 option : Long life fan)	PDF download	-
	FAN-PB15-F3	Fan unit for PBA1500F. (F3 option : Reversed air flow )	PDF download	-
	FAN-PB15-F4	Fan unit for PBA1500F. (F4 option : Lower speed fan)	PDF download	-
Harness
	H-PA-3	Harness for parallel operation.	PDF download	-
	H-SN-20	Harness for using all functions of CN1 and CN2.	PDF download	-
	H-SN-21	Harness for using all functions except remote sensing of CN2.	PDF download	-
	H-SN-22	Harness for using all functions of CN3.	PDF download	-
	H-SN-24	Harness for using example remote ON/OFF circuit C.	PDF download	-
Insulated tube
	T-PBA1500-1	Insulation tube for output terminal base.	PDF download	-
	T-PBA1500-2	Insulation tube for output terminal base.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

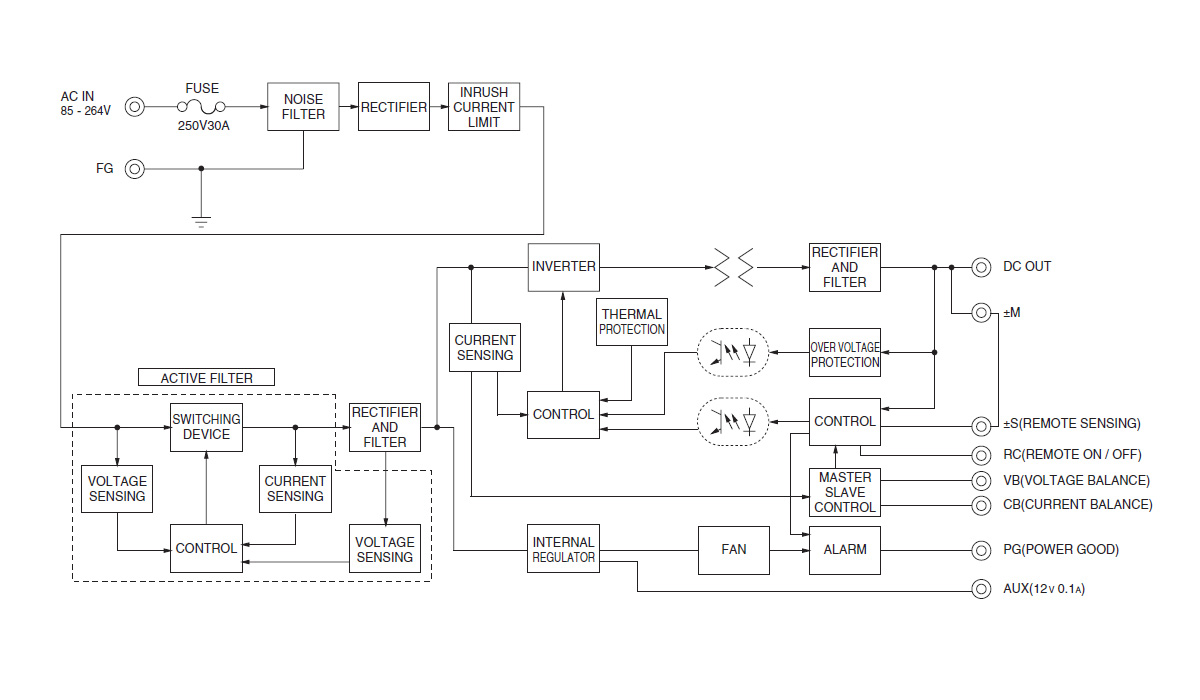

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-20-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 20A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJA1500F
- Recommended products
- UL62368-1
- C-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1500W
Rated Output Voltage: 12V,15V,24V,36V,48V
PCA1500F
- New Product
- Recommended products
- UL62368-1
- C-UL（CSA62368-1）
- EN62368-1
- ANSI/AAMI ES60601-1
- EN60601-1 3rd*
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 1500W
Rated Output Voltage:5V,12V,15V,24V,32V,48V

PB⁽¹⁾ A⁽²⁾ 1500⁽³⁾ F⁽⁴⁾ - 5⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  U: Operation stop voltage is set at a lower value
  F1: With Long-Life fan
  F3: Reverse air exhaust type
  F4: Low speed fan

Refer to instruction manual 7.1.

Data sheet download

PBA1500F specifications (overview)

Product		PBA1500F-3R3	PBA1500F-5	PBA1500F-7R5	PBA1500F-12	PBA1500F-15	PBA1500F-24	PBA1500F-36	PBA1500F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *	AC85 - 264V 1Φ or DC120 - 370V *
Output	Wattage	990W	1500W	1500W	1500W	1500W	1680W	1692W	1680W
	Voltage・Current	3.3V 300A	5V 300A	7.5V 200A	12V 125A	15V 100A	24V 65A ACIN 100V 24V 70 (105) A ACIN 200V	36V 42A ACIN 100V 36V 47A (70) A ACIN 200V	48V 32A
	Voltage variable range	2.64 - 3.96V	3.96 - 6.00V	5.25 - 8.25V	8.25 - 13.20V	10.50 - 16.50V	16.50 - 26.40V	25.20 - 39.60V	38.40 - 56.00V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	178x61x268mm [7.01x2.4x10.55 inches] (without terminal block and screw)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
