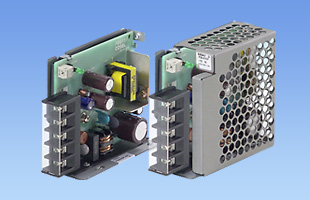

PBA15F

PBAseries

To Be Discontinued (October 20, 2026)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 15W
Rated Output Voltage: 3.3V,5V,9V,12V,15V,24V,48V

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Complies with the SEMIF47 standard(Refer to instruction manual)
• Wide product lineup ranging from 10 W to 1500 W

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

<p>Attachment Plate, Attachment for Replacement, DIN Rail Attachment Plate, Harness</p>

Type	Model number	Description	PDF	DXF
DIN rail Attachment Plate
DIN rail Attachment Plate	FD-PBA15	DIN rail attachment plate. (DIN rail width : 35mm)	PDF download	DXF download
Attachment
	F-PBA15-1	Attachment plate to facilitate mounting. (For the bottom side mounting)	PDF download	DXF download
	F-PBA15-2	Attachment plate to facilitate mounting. (For the front side/back side mounting)	PDF download	DXF download
Harness
	H-IN-3	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-IN-27	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-OU-9	Mating harness for output of the connector type power supply. (Mfr : J.S.T.)	PDF download	-
	H-SN-18	Please refer catalog of applicable model for usage.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes N option) N1:DIN rail installation type(with Cover) T:Vertical terminal block J1:VH (J.S.T.) connector type
3D CAD data	STEP	Standard model (includes N option)
3D CAD data	IGES	Standard model (includes N option)

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PDA15F
- New Product
- Recommended products
- UL62368-1
- c-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 15W
Rated Output Voltage: 5V, 12V, 24V

PB⁽¹⁾ A⁽²⁾ 15⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  E: Low leakage current and EMI class A
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type
  N: with Cover (UL508 is acquired [5V, 12V, 24V])
  N1: with DIN rail and Cover
  V: Output voltage setting potentiometer externally

Data sheet download

PBA15F specifications (overview)

Product		PBA15F-3R3	PBA15F-5	PBA15F-9	PBA15F-12	PBA15F-15	PBA15F-24	PBA15F-48
Input voltage		AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *	AC85 - 264V 1Φ or DC110 - 370V *
Output	Wattage	9.9W	15W	15.3W	15.6W	15W	16.8W	16.8W
	Voltage・Current	3.3V 3A	5V 3A	9V 1.7A	12V 1.3A	15V 1A	24V 0.7A	48V 0.35A
	Voltage variable range	2.85 - 3.60V	4.50 - 5.50V	7.50 - 10.0V	10.0 - 13.2V	13.2 - 18.0V	19.2 - 27.0V	39.0 - 53.0V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	31x78x85mm [1.22x3.07x3.35 inches] (without terminal block)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
