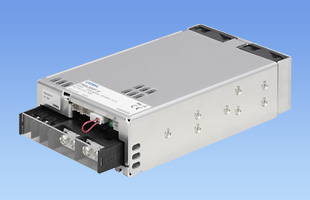

PBA300F

PBAseries

To Be Discontinued (October 20, 2026)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 3.3V,5V,7.5V,12V,15V,24V,36V,48V

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Complies with the SEMIF47 standard(Refer to instruction manual)
• Wide product lineup ranging from 10 W to 1500 W

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

<p>DIN Rail Attachment Plate, Harness, Fan unit</p>

Type	Model number	Description	PDF	DXF
Fan unit
	FAN-PB3	Fan unit for PBA300F. (Standard model)	PDF download	-
	FAN-PB3-F3	Fan unit for PBA300F. (F3 option : Reversed air flow)	PDF download	-
	FAN-PB3-F4	Fan unit for PBA300F. (F4 option : Lower speed fan)	PDF download	-
DIN rail Attachment Plate
DIN rail Attachment Plate	FD-PBA300	DIN rail attachment plate. (DIN rail width : 35mm)	PDF download	DXF download
Harness
	H-PA-3	Harness for parallel operation.	PDF download	-
	H-SN-20	Harness for using all functions of CN1 and CN2.	PDF download	-
	H-SN-21	Harness for using all functions except remote sensing of CN2.	PDF download	-
	H-SN-22	Harness for using all functions of CN3.	PDF download	-
	H-SN-24	Harness for using example remote ON/OFF circuit C.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model N1:DIN rail installation type(with Cover)
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

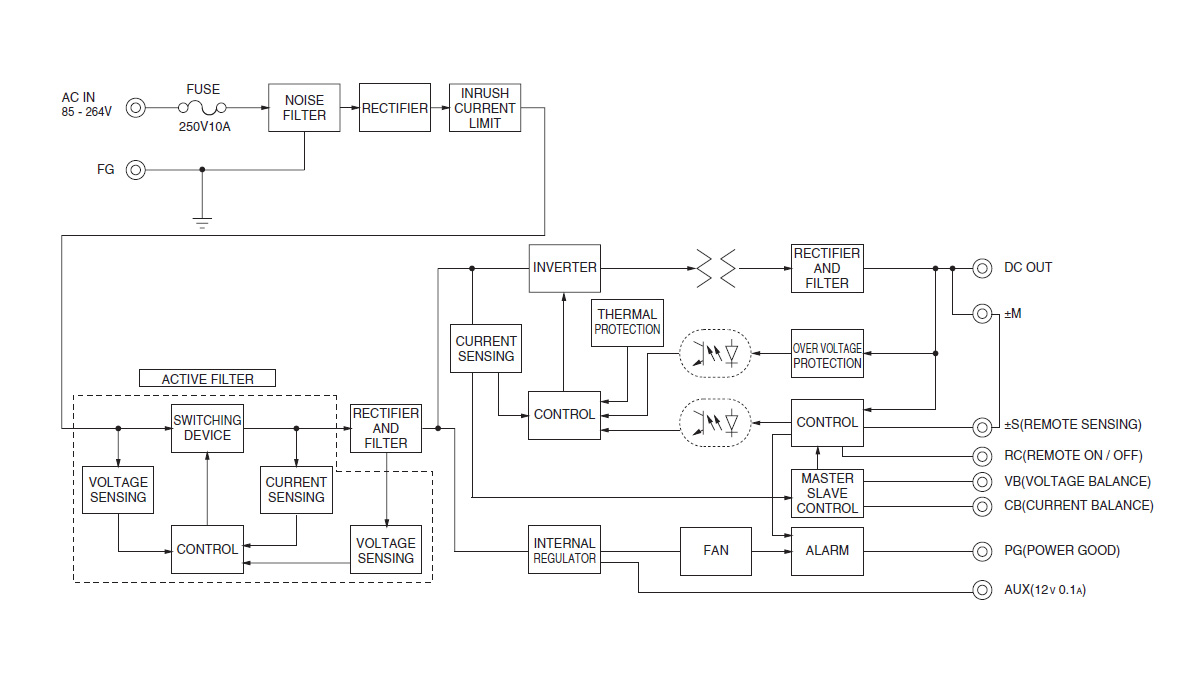

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJA300F
- Recommended products
- UL62368-1
- C-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 5V,12V,15V,24V,36V,48V
PCA300F
- New Product
- Recommended products
- UL62368-1
- C-UL（CSA62368-1）
- EN62368-1
- ANSI/AAMI ES60601-1
- EN60601-1 3rd*
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 300W
Rated Output Voltage:5V,12V,15V,24V,32V,48V
PDA300F
- New Product
- Recommended products
- UL62368-1
- c-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 12V, 15V, 24V, 36V, 48V

PB⁽¹⁾ A⁽²⁾ 300⁽³⁾ F⁽⁴⁾ - 5⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  U: Operation stop voltage is set at a lower value
  F3: Reverse air exhaust type
  F4: Low speed fan
  N1: with DIN rail

Refer to instruction manual 7.1.

Data sheet download

PBA300F specifications (overview)

Product		PBA300F-3R3	PBA300F-5	PBA300F-7R5	PBA300F-12	PBA300F-15	PBA300F-24	PBA300F-36	PBA300F-48
Input voltage		AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *	AC85 - 264V 1Φ or DC120 - 350V *
Output	Wattage	198W	300W	300W	324W	330W	336W	324W	336W
	Voltage・Current	3.3V 60A	5V 60A	7.5V 40A	12V 27A	15V 22A	24V 14A ACIN 100V 24V 14 (16.5) A ACIN 200V	36V 9A	48V 7A
	Voltage variable range	2.64 - 3.96V	3.96 - 6.00V	5.25 - 8.25V	8.25 - 13.20V	10.50 - 16.50V	16.50 - 26.40V	25.20 - 39.60V	38.40 - 56.00V
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	102x42x170mm [4.02x1.65x6.69 inches] (without terminal block and screw)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF
