PBW30F

PBWseries

PBW15F
PBW30F
PBW50F

To Be Discontinued (October 20, 2026)
UL60950-1
C-UL (CSA60950-1)
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 30W
Rated Output Voltage: ±5V (+10V reference number）,±12V (+24V reference number）,±15V (+30V reference number）

• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V)
• Complies with the SEMIF47 standard(Refer to instruction manual)

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

Attachment Plate, DIN Rail Attachment Plate, Harness

Type	Model number	Description	PDF	DXF
DIN rail Attachment Plate
DIN rail Attachment Plate	FD-PBA30	DIN rail attachment plate. (DIN rail width : 35mm)	PDF download	DXF download
Attachment
	F-PBA30-1	Attachment plate to facilitate mounting. (For the bottom side mounting)	PDF download	DXF download
	F-PBA30-2	Attachment plate to facilitate mounting. (For the front side/back side mounting)	PDF download	DXF download
Harness
	H-IN-3	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-IN-27	Mating harness for input with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-OU-48	Mating harness for output with J1 option. (Mfr : J.S.T.)	PDF download	-
	H-SN-18	Please refer catalog of applicable model for usage.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model (includes N option) N1:DIN rail installation type(with Cover) T:Vertical terminal block J1:VH (J.S.T.) connector type
3D CAD data	STEP	Standard model (includes N option)
3D CAD data	IGES	Standard model (includes N option)

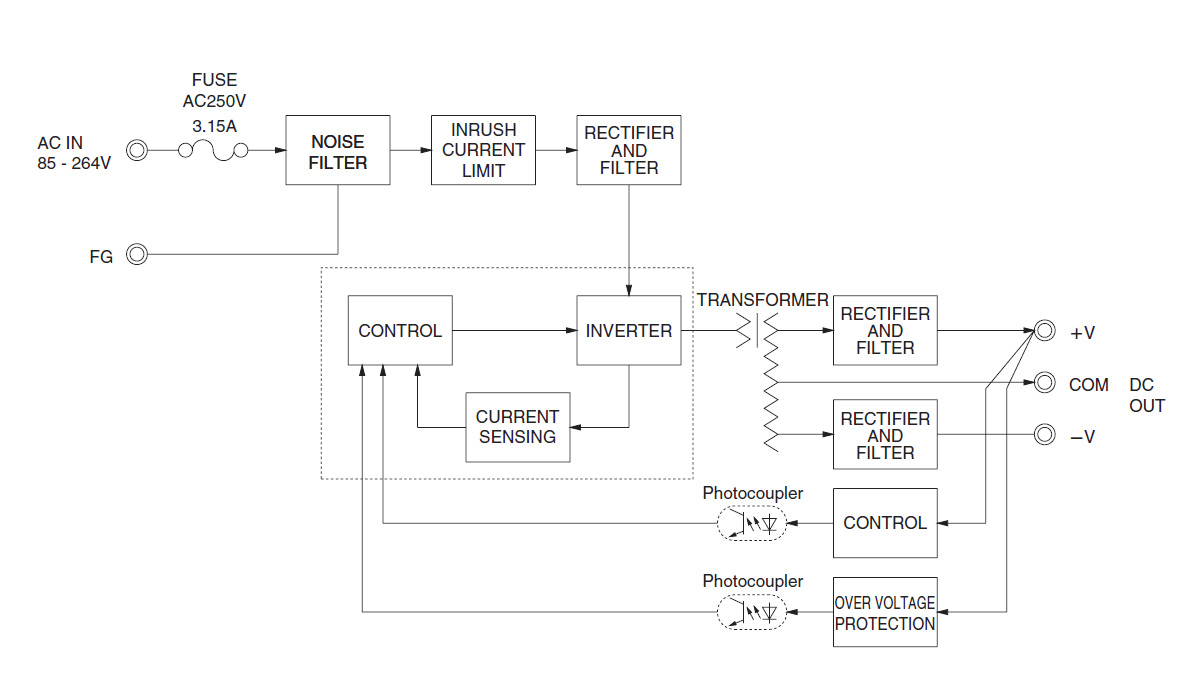

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-06-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PB⁽¹⁾ W⁽²⁾ 30⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  E: Low leakage current and EMI class A
  T: Vertical terminal block
  J1: VH (J.S.T.) connector type
  N: with Cover
  N1: with DIN rail
  V: Output voltage setting potentiometer externally

Data sheet download

PBW30F specifications (overview)

Product		PBW30F-5	PBW30F-12	PBW30F-15
Input voltage		AC85 - 264V 1Φ or DC110 - 370V (AC50 or DC70 Please refer to the instruction manual) *	AC85 - 264V 1Φ or DC110 - 370V (AC50 or DC70 Please refer to the instruction manual) *	AC85 - 264V 1Φ or DC110 - 370V (AC50 or DC70 Please refer to the instruction manual) *
Output	Wattage	15W	31.2W	30.0W
	Voltage・Current	±5V (+10V) Rated Current1: 1.5A Rated Current2: 2.0A *	±12V (+24V) Rated Current1: 1.3A Rated Current2: 1.7A *	±15V (+30V) Rated Current1: 1.0A Rated Current2: 1.4A *
	Voltage variable range	4.99 - 6.00V（+V and -V are simultaneously adjusted）	9.60 - 13.2V（+V and -V are simultaneously adjusted）	13.2 - 16.5V（+V and -V are simultaneously adjusted）
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	31x78x103mm [1.22x3.07x4.06 inches] (without terminal block)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
