Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 12V, 15V, 24V, 36V, 48V
• PBA compatible with the same external dimensions and mounting holes
• Output voltage can be adjusted to near 0V
• Constant current function
• Parallel Operation / N+1 Parallel Redundancy Operation possible
• Complies with SEMI F47
Free warranty period 5-year (Refer to Instruction Manuals)

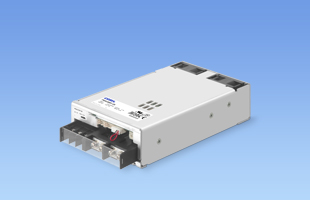

General-purpose enclosed power supply.
Designed with the same external dimensions and mounting specifications as the PBA series, making replacement and redesign simple.
Improved power efficiency reduces heat generation, allowing greater flexibility in layout.
| Type | Model number | Description | DXF |
|---|
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
|
|---|---|---|
| 3D CAD data | STEP |
Standard model
|
| IGES |
Standard model
|
Single phase 250VAC 6A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter
PD(1) A(2) 300(3) F(4) - □(5)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
* For further information and how to use, please see in Cosel product catalog.
