PDAseries

PDA50F

  • New Product
  • Recommended products
  • UL62368-1
  • c-UL (CSA62368-1)
  • EN62368-1
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 50W
Rated Output Voltage: 5V, 12V, 24V

• PBA compatible with the same external dimensions and mounting holes
• High efficiency
• Harmonic attenuator (Complies with IEC61000-3-2)
• Complies with SEMI F47

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the PDA series?

General-purpose enclosed power supply.
Designed with the same external dimensions and mounting specifications as the PBA series, making replacement and redesign simple.
Improved power efficiency reduces heat generation, allowing greater flexibility in layout.

Technical features

  • Adjustable Output Voltage

Attachment Plate

Type Model number Description PDF DXF
Attachment
F-PBA50-1 Attachment plate to facilitate mounting.
(For the bottom side mounting)		 PDF download DXF download
F-PBA50-2 Attachment plate to facilitate mounting.
(For the front side/back side mounting)		 PDF download DXF download
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model (includes N option)
3D CAD data STEP Standard model (includes N option)
IGES Standard model (includes N option)

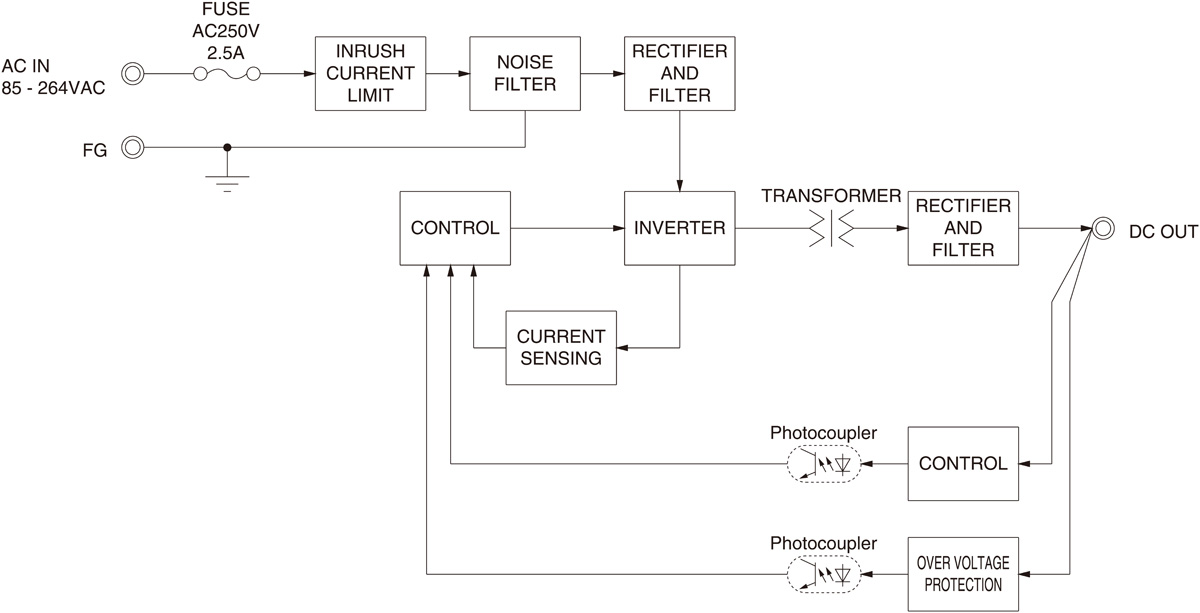

Block diagram

/tool/tag/fig/e_blo_pda50f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-06-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

PD(1)  A(2)  50(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  N: with Cover
Catalog download

PDA50F specifications (overview)

Product PDA50F-5 PDA50F-12 PDA50F-24
Input voltage 85 - 264VAC 1Φ 85 - 264VAC 1Φ 85 - 264VAC 1Φ
Output Wattage 50W 51.6W 52.8W
Voltage・Current 5V 10A 12V 4.3A 24V 2.2A
Voltage variable range 4.00 - 5.50V 10.0 - 13.2V 19.2 - 27.0V
Applicable standards Safety Certifications UL62368-1, c-UL (CSA62368-1), EN62368-1, Complies with DEN-AN
Structure External dimensions (W×H×D) 31x82x120mm [1.22x3.23x4.72 inches] (without terminal block)
Cooling method Convection
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
