PDAseries

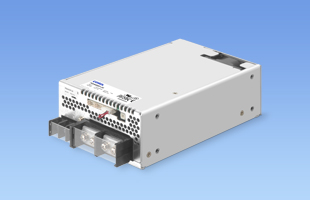

PDA600F

  • New Product
  • Recommended products
  • UL62368-1
  • c-UL (CSA62368-1)
  • EN62368-1
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA

Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 12V, 15V, 24V, 36V, 48V

• PBA compatible with the same external dimensions and mounting holes
• Output voltage can be adjusted to near 0V
• Constant current function
• Parallel Operation / N+1 Parallel Redundancy Operation possible
• Complies with SEMI F47

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the PDA series?

General-purpose enclosed power supply.
Designed with the same external dimensions and mounting specifications as the PBA series, making replacement and redesign simple.
Improved power efficiency reduces heat generation, allowing greater flexibility in layout.

Technical features

  • Adjustable Output Voltage
Type Model number Description PDF DXF
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

/tool/tag/fig/e_blo_pda600f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

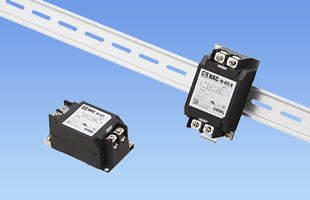

  • NAC-10-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 10A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

PD(1)  A(2)  600(3)  F(4)  -  □(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage

Catalog download

PDA600F specifications (overview)

Product PDA600F-3R3 PDA600F-5 PDA600F-12 PDA600F-15 PDA600F-24 PDA600F-36 PDA600F-48
Input voltage

85 - 264VAC 1Φ

85 - 264VAC 1Φ

85 - 264VAC 1Φ

85 - 264VAC 1Φ

85 - 264VAC 1Φ

85 - 264VAC 1Φ

85 - 264VAC 1Φ
Output Wattage

396W

600W

636W

645W

648W

648W

624W
Voltage・Current

3.3V 120A

5V 120A

12V 53A

15V 3A

24V 27A ACIN 100V
24V 27 (31) A ACIN 230V

36V 18A

48V 13A
Voltage variable range 2.64 - 3.96V 3.96 - 6.00V 8.25 - 13.20V 10.50 - 16.50V 16.50 - 26.40V 25.20 - 39.60V 38.40 - 56.00V
Applicable standards Safety Certifications UL62368-1, c-UL (CSA62368-1), EN62368-1, Complies with DEN-AN
Structure External dimensions (W×H×D) 120x61x190mm [4.72x2.4x7.48 inches] (without terminal block and screw)
Cooling method Forced cooling (internal fan)
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
