PJAseries

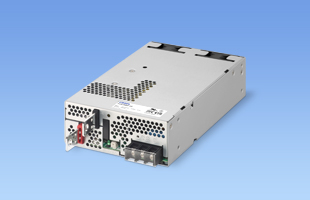

PJA1000F

  • Recommended products
  • UL62368-1
  • C-UL (CSA62368-1)
  • EN62368-1
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1000W
Rated Output Voltage: 12V,15V,24V,36V,48V

• Low profile (meets 2U height = 61 mm or 2.40 inches)
• Stop or Slow fan speed at no load

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the PJA series?

Cost-optimized, general-purpose enclosed power supply.
Designed with essential functionality for maximum value.
Available in a comprehensive lineup of 32 models from 100W to 1500W.

Technical features

  • Adjustable Output Voltage
  • Operating LED
  • Remote Control
Type Model number Description PDF DXF
Harness
H-PA-9 Harness for parallel operation. (option : W) PDF download -
H-RC-5 Harness for using a function of option -R. PDF download -
H-SN-18 Please refer catalog of applicable model for usage. PDF download -
H-SN-32 Harness for using all functions of option -W and -R. PDF download -
H-SN-33 Harness for using all functions except remote sensing of option -W and -R. PDF download -
Insulated tube
T-PBA1500-1 Insulation tube for output terminal base. PDF download -
T-PBA1500-2 Insulation tube for output terminal base. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

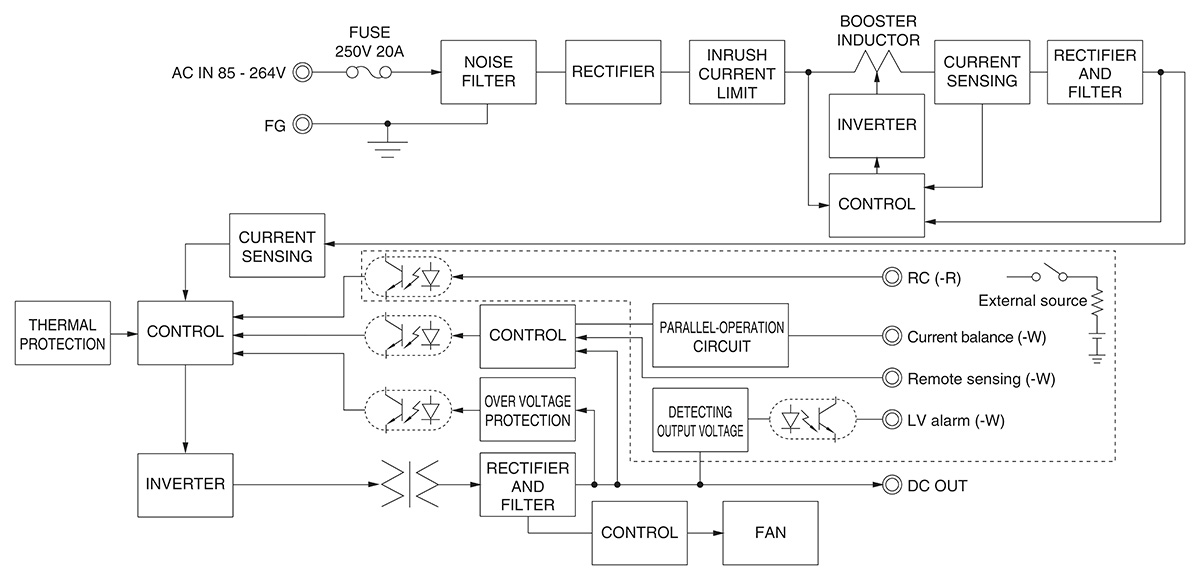

Block diagram

/tool/tag/fig/e_blo_pja1000f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-20-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 20A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

PJ(1)  A(2)  1000(3)  F(4)  -  □(5)  -  □(6)



(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  V: External potentiometer for output voltage adjustment
  W: Parallel operation, LV alarm and Remote sensing
  R: with Remote ON/OFF (External power source is required）
  U: Operation stop voltage is set at a lower value


See 5.1 in Instruction Manual.
Data sheet download

PJA1000F specifications (overview)

Product PJA1000F-12 PJA1000F-15 PJA1000F-24 PJA1000F-36 PJA1000F-48
Input voltage AC85 - 264V 1Φ ※ AC85 - 264V 1Φ ※ AC85 - 264V 1Φ ※ AC85 - 264V 1Φ ※ AC85 - 264V 1Φ ※
Output Wattage 1008W ACIN115V - 264V 1005W ACIN115V - 264V 1008W ACIN115V - 264V 1008W ACIN115V - 264V 1008W ACIN115V - 264V
Voltage・Current 12V 84A 15V 67A 24V 42A 36V 28A 48V 21A
Voltage variable range 10.80 - 13.50V 13.50 - 17.30V 20.40 - 28.50V 30.60 - 40.80V 40.80 - 55.20V
Applicable standards Safety Certifications UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN
Structure External dimensions (W×H×D) 150x61x240mm [5.91x2.40x9.45 inches] (Excluding terminal block and screw)
Cooling method Forced cooling (internal fan)
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
