PJA150F

PJAseries

Recommended products
UL62368-1
C-UL (CSA62368-1)
EN62368-1
UL508 (Except option -J) Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 150W
Rated Output Voltage: 12V,15V,24V,36V,48V

• Compact design (Depth: 129mm 5.08inches)
• Low power consumption (1.5W typ AC240Vin, no load at standard model)
• UL508 approved (Except option -J) , and complies with SEMI F47 (see instruction manual 1.1)
• Various connection interface options (vertical terminal [-T], AMP connector [-J])

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the PJA series?

Cost-optimized, general-purpose enclosed power supply.
Designed with essential functionality for maximum value.
Available in a comprehensive lineup of 32 models from 100W to 1500W.

Technical features

Adjustable Output Voltage
Operating LED
Remote Control

Attachment Plate, Harness

Type	Model number	Description	PDF	DXF
DIN rail Attachment Plate
DIN rail Attachment Plate	FD-PJA150-2	DIN rail attachment plate. (DIN rail width : 35mm)	PDF download	DXF download
Attachment
	F-PLA100-1	Attachment plate to facilitate mounting. (For the bottom side mounting)	PDF download	DXF download
	F-PLA100-2	Attachment plate to facilitate mounting. (For the front side/back side mounting)	PDF download	DXF download
Harness
	H-IN-22	Mating harness for input of the connector type power supply with J option.	PDF download	-
	H-IN-26	Mating harness for input of the connector type power supply with J1 option.	PDF download	-
	H-OU-37	Mating harness for output with J option.	PDF download	-
	H-OU-44	Mating harness for output with J1 option.	PDF download	-
	H-RC-1	Harness for using option : -R.	PDF download	-

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model N2:DIN rail installation type T:Vertical terminal block J:Connector type
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

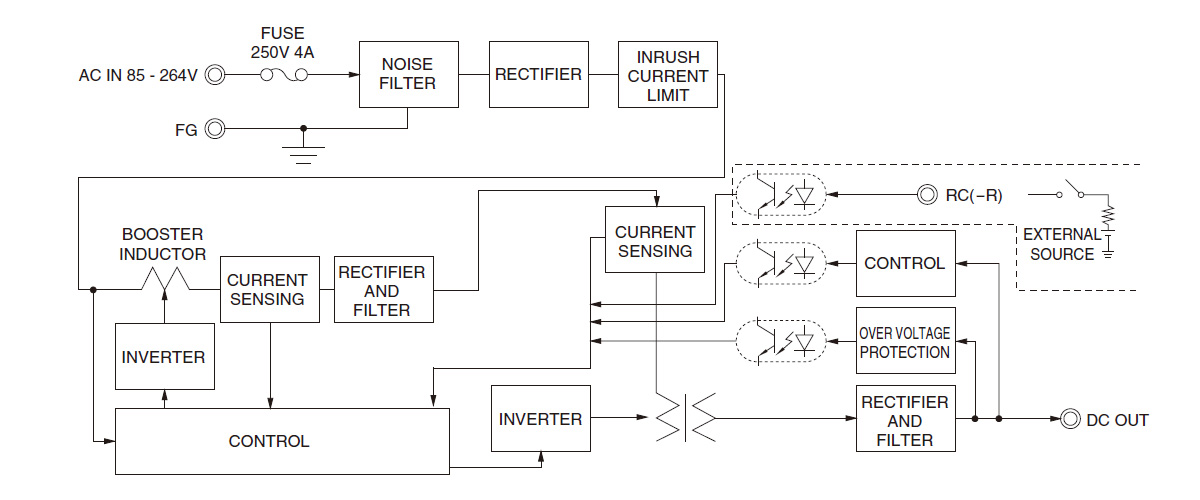

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-04-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 4A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJ⁽¹⁾ A⁽²⁾ 150⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   R: with Remote ON/OFF (Required external power source)
   J: Connector interface
   T: Vertical terminal block
   N2: with DIN rail

See 5.1 in Instruction Manual.

Data sheet download

PJA150F specifications (overview)

Product		PJA150F-12	PJA150F-15	PJA150F-24	PJA150F-36	PJA150F-48
Input voltage		AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *
Output	Wattage	150W ACIN 115V - 264V	150W ACIN 115V - 264V	153.6W ACIN 115V - 264V	151.2W ACIN 115V - 264V	153.6W ACIN 115V - 264V
	Voltage・Current	12V 12.5A	15V 10A	24V 6.4A	36V 4.2A	48V 3.2A
	Voltage variable range	10.80 - 13.20V	13.50 - 16.50V	21.60 - 26.40V	32.40 - 39.60V	43.20 - 52.80V
Applicable standards	Safety Certifications	UL62368-1, C-UL (CSA62368-1) , EN62368-1, UL508 (Except option -J) Complies with DEN-AN
Structure	External dimensions (W×H×D)	41x97x129mm [1.61x3.82x5.08 inches] (Excluding terminal block and screw)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF
