PJAseries

PJA300F

  • Recommended products
  • UL62368-1
  • C-UL (CSA62368-1)
  • EN62368-1
  • Complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 300W
Rated Output Voltage: 5V,12V,15V,24V,36V,48V

• Low profile (meets 1U height = 41 mm or 1.61 inches)
• Slow fan speed at no load
• Complies with SEMI F-47 (Manual for details)

Free warranty period 5-year (Refer to Instruction Manuals)

What's great about the PJA series?

Cost-optimized, general-purpose enclosed power supply.
Designed with essential functionality for maximum value.
Available in a comprehensive lineup of 32 models from 100W to 1500W.

Technical features

  • Adjustable Output Voltage
  • Operating LED
  • Remote Control

Attachment Plate, Harness

Type Model number Description PDF DXF
Attachment
F-PLA300-1 Attachment plate to facilitate mounting.
(For the bottom side mounting)		 PDF download DXF download
F-PLA300-2 Attachment plate to facilitate mounting.
(For the front side/back side mounting)		 PDF download DXF download
F-PLA300-3 Attachment plate to facilitate mounting.
(For the bottom side mounting)		 PDF download DXF download
Harness
H-RC-6 Harness for using option : -R. PDF download -
H-SN-18 Please refer catalog of applicable model for usage. PDF download -
Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

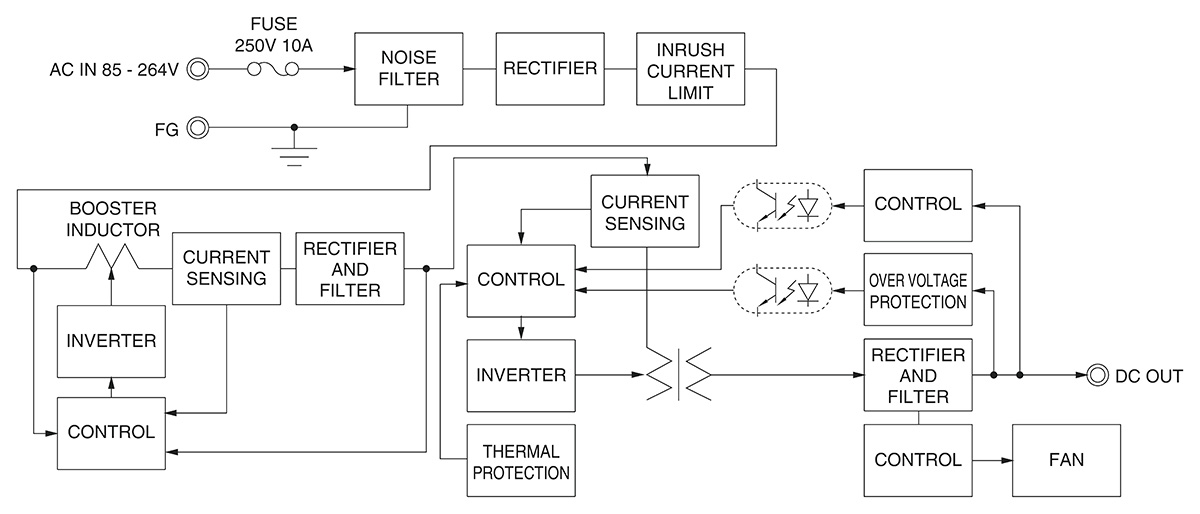

Block diagram

/tool/tag/fig/e_blo_pja300f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-06-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

PJ(1)  A(2)  300(3)  F(4)  -  □(5) &nbsp


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   R: with Remote ON/OFF (External power source is required)
   F4: Low speed fan

See 5.1 in Instruction Manual.
Data sheet download

PJA300F specifications (overview)

Product PJA300F-5 PJA300F-12 PJA300F-15 PJA300F-24 PJA300F-36 PJA300F-48
Input voltage AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ * AC85 - 264V 1Φ *
Output Wattage 250W ACIN100V - 264V 300W ACIN100V - 264V 300W ACIN100V - 264V 300W ACIN100V - 264V 302.4W ACIN100V - 264V 302.4W ACIN100V - 264V
Voltage・Current 5V 50A 12V 25A 15V 20A 24V 12.5A 36V 8.4A 48V 6.3A
Voltage variable range 4.50 - 5.50V 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 32.40 - 39.60V 43.20 - 52.80V
Applicable standards Safety Certifications UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN
Structure External dimensions (W×H×D) 102x41x190mm [4.02x1.61x7.48 inches] (Excluding terminal block and screw)
Cooling method Forced cooling (internal fan)
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
