PJAseries

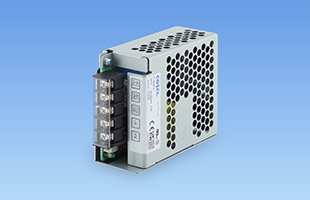

PJA50F

  • New Product
  • Recommended products
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No.62368-1)
  • EN62368-1
  • complies with DEN-AN
  • RoHS
    UL・C-UL
    DEMKO
    CE
    UKCA
Rated Input: 85 - 264VAC 1Φ
Rated Output Wattage: 50W
Rated Output Voltage: 5V,12V,15V,24V

• Compact design (Depth: 99mm 3.90inches)
• Low power consumption (1.0W typ AC240Vin, no load at standard model)
• complies with SEMI F47 (see instruction manual 1.1)
• Various connection interface options (vertical terminal [-T], AMP connector [-J1])

Free warranty period 5-year (Refer to Instruction Manuals)

Release year: 2026

What's great about the PJA series?

Cost-optimized, general-purpose enclosed power supply.
Designed with essential functionality for maximum value.
Available in a comprehensive lineup of 44 models from 15W to 1500W.

Technical features

  • Adjustable Output Voltage
  • Operating LED
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

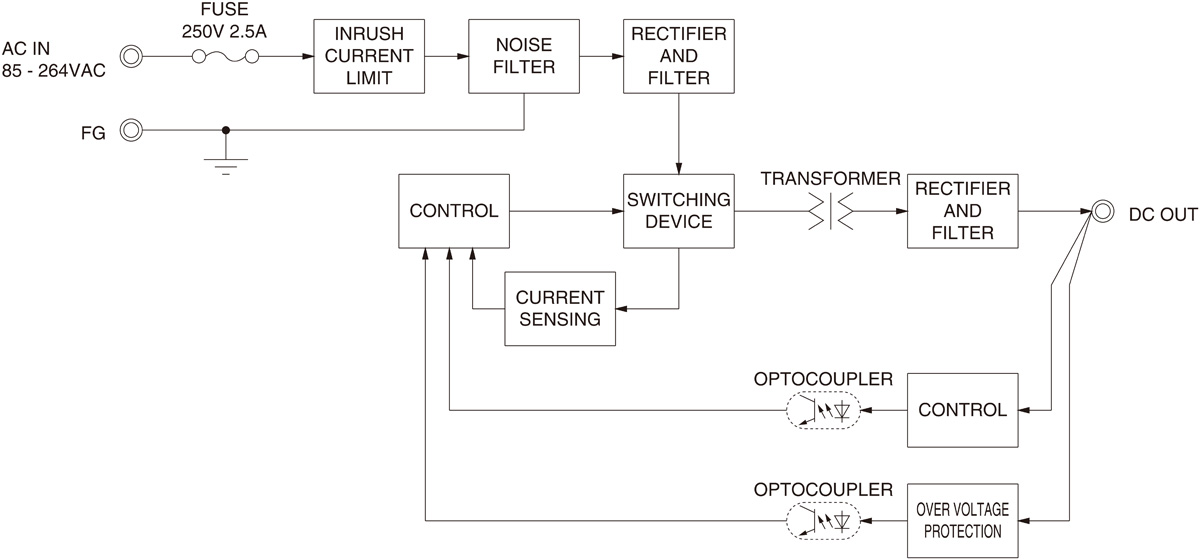

Block diagram

/tool/tag/fig/e_blo_pja50f.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • EAM-06-471

    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 6A
    Compact size
    Low leakage current type
    1-stage filter

PJ(1)  A(2)  50(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J1: Connector interface
  T: Vertical terminal block
  N2: with DIN rail

See 5.1 in Instruction Manual.
Data sheet download Instruction manual

PJA50F specifications (overview)

Product PJA50F-5 PJA50F-12 PJA50F-15 PJA50F-24
Input voltage 85 - 264VAC 1Φ * 85 - 264VAC 1Φ * 85 - 264VAC 1Φ * 85 - 264VAC 1Φ *
Output Wattage 40W ACIN115V - 264V 51.6W ACIN115V - 264V 52.5W ACIN115V - 264V 52.8W ACIN115V - 264V
Voltage・Current 5V 8A 12V 4.3A 15V 3.5A 24V 2.2A
Voltage variable range 4.50 - 5.50V 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V
Applicable standards Safety Certifications UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1, complies with DEN-AN
Structure External dimensions (W×H×D) 38x80x99mm [1.50x3.15x3.90 inches] (Excluding terminal block and screw)
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
