Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 1000W
Rated Output Voltage: 12V,24V,36V,48V
• Medical Isolation Grade 2MOPP
• 4kV isolation
• Harmonic attenuator (Complies with IEC61000-3-2 class A)
• Low power consumption at no load
Free warranty period 5-year (Refer to Instruction Manuals)

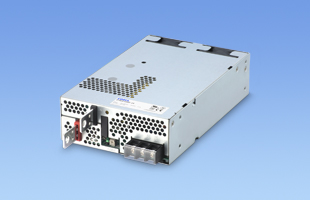

Enclosed power supply compliant with medical electrical equipment standards.
Ideal for medical devices such as CT scanners and diagnostic equipment (e.g., blood analyzers).
<p>Harness, Insulated tube</p>
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| Harness | ||||
| H-PA-9 | Harness for parallel operation. (option : W) | PDF download | - | |
| H-RC-5 | Harness for using a function of option -R. | PDF download | - | |
| H-SN-18 | Please refer catalog of applicable model for usage. | PDF download | - | |
| H-SN-32 | Harness for using all functions of option -W and -R. | PDF download | - | |
| H-SN-33 | Harness for using all functions except remote sensing of option -W and -R. | PDF download | - | |
| Insulated tube | ||||
| T-PBA1500-1 | Insulation tube for output terminal base. | PDF download | - | |
| T-PBA1500-2 | Insulation tube for output terminal base. | PDF download | - |
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
|
|---|---|---|
| 3D CAD data | STEP |
Standard model
|
| IGES |
Standard model
|
Single phase 250VAC 20A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter
PJM(1) A(2) 1000(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
V: External potentiometer for output voltage adjustment
W: Parallel operation, LV alarm and Remote sensing
W1: LV alarm and Remote sensing
R: with Remote ON/OFF (External power source is required）
F4: Low speed fan
See 5.1 in Instruction Manual.
* For further information and how to use, please see in Cosel product catalog.
