Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 600W
Rated Output Voltage: 12V,24V,36V,48V
• Medical Isolation Grade 2MOPP
• 4kV isolation
• Harmonic attenuator (Complies with IEC61000-3-2 class A)
• Low power consumption at no load
Free warranty period 5-year (Refer to Instruction Manuals)

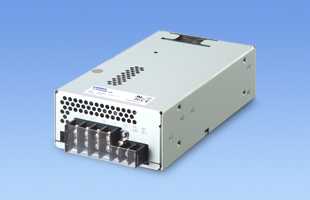

Enclosed power supply compliant with medical electrical equipment standards.
Ideal for medical devices such as CT scanners and diagnostic equipment (e.g., blood analyzers).
Attachment Plate, Harness
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| Attachment | ||||
| F-PLA600-1 | Attachment plate to facilitate mounting. (For the bottom side mounting) |
PDF download | DXF download | |
| F-PLA600-2 | Attachment plate to facilitate mounting. (For the front side/back side mounting) |
PDF download | DXF download | |
| F-PLA600-3 | Attachment plate to facilitate mounting. (For the bottom side mounting) |
PDF download | DXF download | |
| Harness | ||||
| H-RC-5 | Harness for using a function of option -R. | PDF download | - | |
| H-SN-18 | Please refer catalog of applicable model for usage. | PDF download | - |
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model
|
|---|---|---|
| 3D CAD data | STEP |
Standard model
|
| IGES |
Standard model
|
Single phase 250VAC 16A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter
PJM(1) A(2) 600(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
V: External potentiometer for output voltage adjustment
R: with Remote ON/OFF (External power source is required)
W1: LV alarm and Remote sensing
F4: Low speed fan
See 5.1 in Instruction Manual.
* For further information and how to use, please see in Cosel product catalog.
