PLA600F

PLAseries

Active (NRND)
UL62368-1
C-UL (CSA62368-1)
EN62368-1 Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 600W
Rated Output Voltage: 12V,15V,24V,36V,48V

• Low profile (meets 2U height = 61 mm or 2.40 inches)
• Screw hold type terminal block
• Slow fan speed at no load
• Complies with SEMI F-47 (-U option, see Instruction Manual for details)

Free warranty period 5-year (Refer to Instruction Manuals)

Technical features

Adjustable Output Voltage
Operating LED

Attachment Plate, DIN Rail Attachment Plate, Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

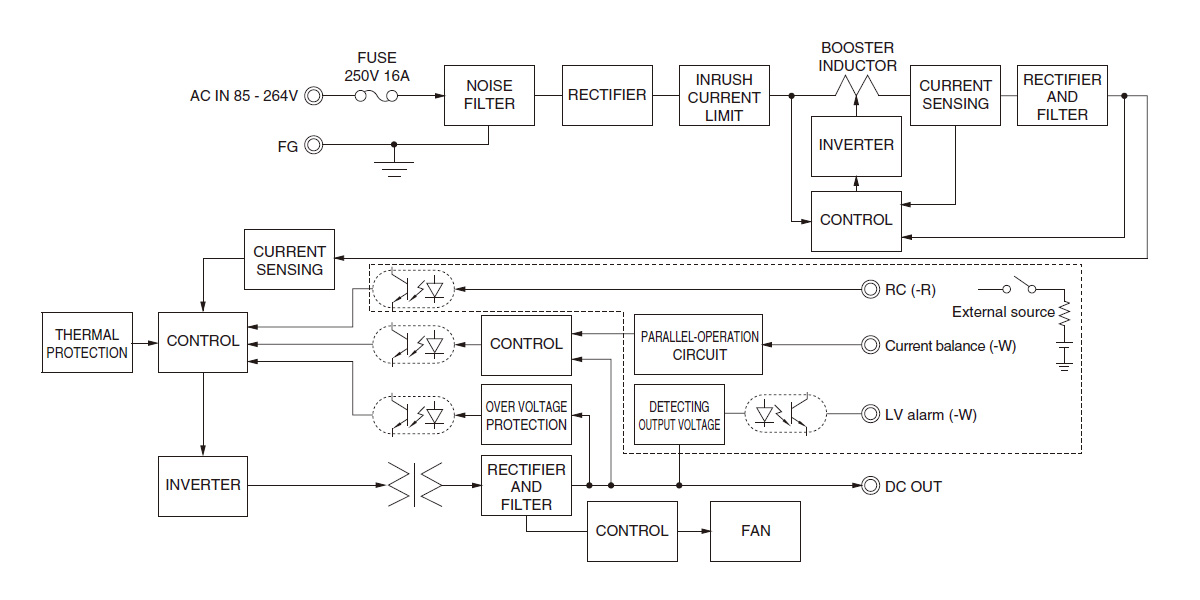

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

NAC-16-472
- New Product
- Recommended products
- Active
- UL1283
- CSA C22.2 No.8 (C-UL)
- DIN EN60939 VDE0565 Teil 3-1
- ENEC (AC input only)
Single phase 250VAC 16A
General purpose
High-attenuation type from 150kHz to 1MHz
1-stage filter

PJA600F
- Recommended products
- UL62368-1
- C-UL (CSA62368-1)
- EN62368-1
- Complies with DEN-AN
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 600W
Rated Output Voltage: 5V,12V,15V,24V,36V,48V

PL⁽¹⁾ A⁽²⁾ 600⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   U: Low input voltage stop (Complies with SEMI F-47)
   W: Parallel operation, LV alarm Remote sensing
   R: with Remote ON/OFF (Required external power source)
   F4: Low speed fan
   T2: Horizontal terminal block (non-screw-hold type)

See 5.1 in Instruction Manual.

Data sheet download

PLA600F specifications (overview)

Product		PLA600F-5	PLA600F-12	PLA600F-15	PLA600F-24	PLA600F-36	PLA600F-48
Input voltage		AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *	AC85 - 264V 1Φ *
Output	Wattage	500W ACIN 115V - 264V	600W ACIN 115V - 264V	600W ACIN 115V - 264V	600W ACIN 115V - 264V	601.2W ACIN 115V - 264V	600W ACIN 115V - 264V
	Voltage・Current	5V 100A	12V 50A	15V 40A	24V 25A	36V 16.7A	48V 12.5A
	Voltage variable range	4.50 - 5.50V	10.80 - 13.20V	13.50 - 16.50V	21.60 - 26.40V	32.40 - 39.60V	43.20 - 52.80V
Applicable standards	Safety Certifications	UL62368-1, C-UL (CSA62368-1) , EN62368-1 Complies with DEN-AN
Structure	External dimensions (W×H×D)	120x61x215mm [4.72x2.40x8.46 inches] (Excluding terminal block and screw)
Structure	Cooling method	Forced cooling (internal fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF
