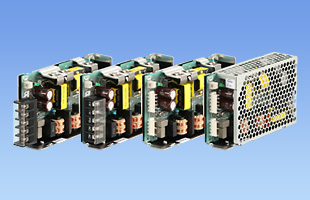

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 60W
Rated Output Voltage: 3.3V,5V,12V,15V,24V
• For medical electric equipment
• Internal dual fuses
• Harmonic attenuator (Complies with IEC61000-3-2)
Free warranty period 5-year (Refer to Instruction Manuals)
Attachment Plate
| Type | Model number | Description | DXF | |
|---|---|---|---|---|
| Attachment | ||||
| F-PBA75-1 | Attachment plate to facilitate mounting. (For the bottom side mounting) |
PDF download | DXF download | |
| F-PBA75-2 | Attachment plate to facilitate mounting. (For the front side/back side mounting) |
PDF download | DXF download | |
| Harness | ||||
| H-IN-3 | Mating harness for input with J1 option. (Mfr : J.S.T.) | PDF download | - | |
| H-IN-15 | Mating harness for input of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-OU-18 | Mating harness for output of the connector type power supply. (Mfr : J.S.T.) | PDF download | - | |
| H-OU-29 | Mating harness for output of the connector type power supply. (Mfr : Tyco Electronics) | PDF download | - | |
| H-RC-1 | Harness for using option : -R. | PDF download | - |
*Some documents may not be listed. Please contact us for more details.
| CAD data | DXF |
Standard model (includes N option)
|
|---|---|---|
| 3D CAD data | STEP |
Standard model (includes N option)
|
| IGES |
Standard model (includes N option)
|
Single phase 250VAC 4A
Low leakage current type
1-stage filter
PM(1) A(2) 60(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
T: Vertical terminal block
T1: Horizontal terminal block
N: with Cover
J1: VH (J.S.T) connector type
R: with Remote ON/OFF
Specification is changed at option, refer to Instruction Manual.
* For further information and how to use, please see in Cosel product catalog.
