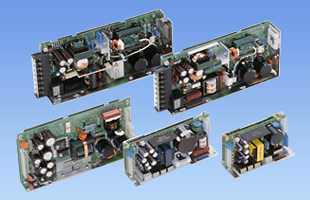

PMCseries

Production discontinued (December 20, 2017)
UL60950-1
CSA C22.2 No.60950-1
EN60950-1
EN50178 Complies with IEC60950-1 and DEN-AN
CSA1402C

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 15 - 100W

• Small size
• Universal input voltage
(PMC15E, 30E: AC85 - 264V PMC50E, 75E, 100E: AC85 - 132V/AC170 - 264V)
• Built-in inrush current and overcurrent protection circuits
• V1 isolated from V2 and V3
• Stabilized output voltage (V1, V2, V3)

Free warranty period 3-year

Technical features

Catalog download

Model	Output Wattage	Rated Input	Output Voltage	Safety Certifications	Cooling method
PMC15	15W	AC85 - 264V 1Φ	+5V/+12V/-12V,+5V/+15V/-15V,+5V/+12V/-5V	UL60950-1 CSA C22.2 No.60950-1 EN60950-1 EN50178 Complies with IEC60950-1 and DEN-AN	Convection
PMC30	30W	AC85 - 264V 1Φ	+5V/+12V/-12V,+5V/+15V/-15V	UL60950-1 CSA1402C EN60950-1 EN50178 Complies with IEC60950-1 and DEN-AN	Convection
PMC50	50W	AC85 - 132/170 - 264V 1Φ (User selectable)	+5V/+12V/-12V,+5V/+15V/-15V	UL60950-1 CSA C22.2 No.60950-1 EN60950-1 EN50178 Complies with IEC60950-1 and DEN-AN	Convection
PMC75	75W	AC85 - 132/170 - 264V 1Φ (User selectable)	+5V/+12V/-12V,+5V/+15V/-15V	UL60950-1 CSA C22.2 No.60950-1 EN60950-1 EN50178 Complies with IEC60950-1 and DEN-AN	Convection
PMC100	100W	AC85 - 132/170 - 264V 1Φ (User selectable)	+5V/+12V/-12V,+5V/+15V/-15V	UL60950-1 CSA1402C EN60950-1 EN50178 Complies with IEC60950-1 and DEN-AN	Convection
