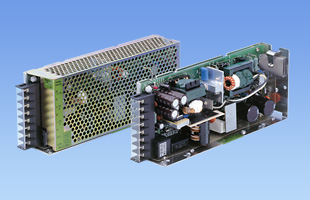

PMC100

PMCseries

PMC15
PMC30
PMC50
PMC75
PMC100

Production discontinued (December 20, 2017)
UL60950-1
CSA1402C
EN60950-1
EN50178 Complies with IEC60950-1 and DEN-AN

Rated Input: AC85 - 132/170 - 264V 1Φ (User selectable)
Rated Output Wattage: 100W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

• Small size
• Universal input voltage
(PMC15E, 30E: AC85 - 264V PMC50E, 75E, 100E: AC85 - 132V/AC170 - 264V)
• Built-in inrush current and overcurrent protection circuits
• V1 isolated from V2 and V3
• Stabilized output voltage (V1, V2, V3)

Free warranty period 3-year

Technical features

Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

PMC⁽¹⁾ 100⁽²⁾ □⁽³⁾ - 1⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
  G: Low leakage current
  J: Connector type
  N: with Cover

Catalog download

PMC100 specifications (overview)

Product		PMC100E-1	PMC100E-2	PMC100E-4
Input voltage		AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V	AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V	AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V
Output	Wattage	101W	102.5W	100W
	Voltage・Current	V1 :+5V 13.0A V2 :+12V 2.0A V3 :-12V 1.0A	V1 :+5V 13.0A V2 :+15V 1.5A V3 :-15V 1.0A	V1 :+5V 8.0A V2 :+12V 4.0A V3 :-12V 1.0A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, CSA1402C, EN60950-1, EN50178 Complies with IEC60950-1 and DEN-AN
Structure	External dimensions (W×H×D)	48x93x220mm (without terminal block and screw)
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-	-
	Reliability
	MTBF		-	-

* For further information and how to use, please see in Cosel product catalog.
