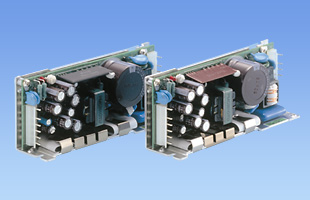

PMC30

PMCseries

Production discontinued (December 20, 2017)
UL60950-1
CSA1402C
EN60950-1
EN50178 Complies with IEC60950-1 and DEN-AN

Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 30W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

• Small size
• Universal input voltage
(PMC15E, 30E: AC85 - 264V PMC50E, 75E, 100E: AC85 - 132V/AC170 - 264V)
• Built-in inrush current and overcurrent protection circuits
• V1 isolated from V2 and V3
• Stabilized output voltage (V1, V2, V3)

Free warranty period 3-year

Technical features

Attachment for Replacement, Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

PMC⁽¹⁾ 30⁽²⁾ □⁽³⁾ - 1⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
C: with Coating
G: Low leakage current

Data sheet download

PMC30 specifications (overview)

Product		PMC30E-1	PMC30E-2
Input voltage		AC85 - 264V 1Φ or DC110 - 370V	AC85 - 264V 1Φ or DC110 - 370V
Output	Wattage	33W	33W
	Voltage・Current	V1 :+5V 3.0A V2 :+12V 1.2A V3 :-12V 0.3A	V1 :+5V 3.0A V2 :+15V 0.7A V3 :-15V 0.5A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, CSA1402C, EN60950-1, EN50178 Complies with IEC60950-1 and DEN-AN
Structure	External dimensions (W×H×D)	38.5x60x145mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
