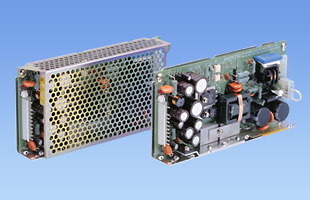

PMC50

PMCseries

Production discontinued (December 20, 2017)
UL60950-1
CSA C22.2 No.60950-1
EN60950-1
EN50178 Complies with IEC60950-1 and DEN-AN

Rated Input: AC85 - 132/170 - 264V 1Φ (User selectable)
Rated Output Wattage: 50W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

• Small size
• Universal input voltage
(PMC15E, 30E: AC85 - 264V PMC50E, 75E, 100E: AC85 - 132V/AC170 - 264V)
• Built-in inrush current and overcurrent protection circuits
• V1 isolated from V2 and V3
• Stabilized output voltage (V1, V2, V3)

Free warranty period 3-year

Technical features

Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

Safety certification

PMC⁽¹⁾ 50⁽²⁾ E⁽³⁾ - 1⁽⁴⁾ -XULA -□⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
C: with Coating
N: with Cover

Data sheet download

PMC50 specifications (overview)

Product		PMC50E-1-XULA	PMC50E-2-XULA	PMC50E-4-XULA
Input voltage		AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V	AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V	AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V
Output	Wattage	49W (Peak: 55W)	50.5W	50.6W (Peak: 56.6W)
	Voltage・Current	V1: +5V 5.0A V2: +12V 1.25A (Peak: 2.0A) V3: -12V 0.35A	V1 :+5V 5.0A V2 :+15V 1.0A V3 :-15V 0.35A	V1: +5V 7.0A V2: +12V 0.7A (Peak: 1.5A) V3: -12V 0.2A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, CSA C22.2 No.60950-1, EN60950-1, EN50178 Complies with IEC60950-1 and DEN-AN
Structure	External dimensions (W×H×D)	30x93x185mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-	-
	Reliability
	MTBF		-	-

* For further information and how to use, please see in Cosel product catalog.
