RBseries

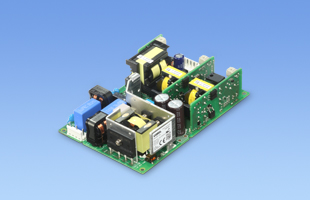

RBC200F

  • Production discontinued (March 11, 2024)
  • UL62368-1
  • C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1)
  • 　EN62368-1
  • EN62477-1 (Overvoltage category Ⅲ)
  • Complies with EN61558-2-16 (Overvoltage category Ⅲ)
  • RoHS
    UL・C-UL
    TUV
    DEMKO
    CE
    UKCA
Rated Input: AC85 - 264V 1Φ
Rated Output Wattage: 200W
Slots: 3
Rated Output Voltage:
3.3V, 5V, 12V, 15V, 16.5V, 24V,
48V, ±12V, ±15V
･Configurable type power supply
･Multiple outputs combination (driving and control systems) for
robot controller applications
･Meets OVCⅢ (Complies with EN60204-1)
･Reinforced isolation between SLOT 3 and SLOT 1, 2

Free warranty period 5-year

Technical features

Harness, External capacitor unit

Type Model number Description PDF DXF
Harness
H-IN-5 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-10 Mating harness for input of the connector type power supply. (Mfr : J.S.T.) PDF download -
H-IN-25 Mating harness for connecting the external capacitor unit. PDF download -
H-OU-39 Mating harness for both V1 and V2 are single output. PDF download -
H-OU-40 Mating harness for V1 is single output, and V2 is dual output. PDF download -
H-OU-41 Mating harness for V3 is single output. PDF download -
H-SN-64 Harness for using functions of CN4. PDF download -
Communication converter
CR-PC-1 This is a unit to convert Extended UART signal to RS232 signal mutually. PDF download -
Instruction manual
Optional parts (sold separately)
RB Series Extended UART Manual
Application Software (Extended-UART)

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

/tool/tag/fig/e_blo_rb-series.jpg
Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

  • NAC-04-472

    • New Product
    • Recommended products
    • Active
    • UL1283
    • CSA C22.2 No.8 (C-UL)
    • DIN EN60939 VDE0565 Teil 3-1
    • ENEC (AC input only)
    • RoHS

    Single phase 250VAC 4A
    General purpose
    High-attenuation type from 150kHz to 1MHz
    1-stage filter

The RB series has Order Name which is used for the ordering aside from Model Name.
Please refer to Configuration-Model Name Construction in Instruction manual for Order Name.
Order Name is required to create by the above menu.

■Model Name

RB(1)C(2)　200(3)　F(4)　-　□(5)□(6)□(7) -　□(8)


(1) Series name
(2) Multiple output
(3) Output wattage
(4) Universal input
(5) Slot 3 Output module
(6) Slot 2 Output module
(7) Slot 1 Output module
(8) Optional
  C : with Coating
  G : Low leakage curent
  R : with Remote ON/OFF
  S : with Chassis
  SN: with Chassis & cover
  T : Vertical terminal block
  U1: Can attach an external capacitor unit
  I3 : with Extended-UART interface
  Refer to instruction manual 9.1

*Empty slot is code: O (Alphabet )
Data sheet download

Input module

Item Specification
Input voltage AC 85 to 264 V single-phase
Output Number of slots 3
Total maximum
output power		 AC 90 to 264 V 207 W
Operating temperature / humidity -20 to +70°C, 20 to 90% RH (non-condensing)
Applicable standards Safety standards UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1 certified
EN62477-1 (Overvoltage Category III) certified
EN61558-2-16 (Overvoltage Category III) compliant
Conducted emission (terminal voltage) FCC-B, VCCI-B, CISPR11-B, CISPR32-B, EN55011-B, EN55032-B compliant
Harmonic current IEC61000-3-2 compliant *
Construction Dimensions (W × H × D) 101 × 38.3 × 152 mm, 101 × 38.3 × 164 mm (with terminal block option)
Mass 450 g max
Cooling method Natural convection / forced-air cooling
Free warranty period 5 years (see instruction manual)
Technical data Performance data
Reliability data
Estimated lifetime data
Safety certification
EMC data
CAD

*For detailed specifications and usage guidelines, please refer to the catalog and instruction manual.


Catalog (including outline drawings)
Instruction manual

Output modules

Item Specification
Module code V W Y Z
Slots used 1 1 1 1
Output Power 120 W 127.5 W 144 W 144 W
Voltage / current 12 V 10 A 15 V 8.5 A 24 V 6 A 48 V 3 A
Voltage adjustment range 11.40 to 13.20 V 14.25 to 16.50 V 22.80 to 26.40 V 45.60 to 52.80 V
Built-in functions Overcurrent protection Activates at 105% min of rated current (automatic recovery, intermittent overcurrent).
Overvoltage protection 14.40 to 17.40 V 18.00 to 21.75 V 28.80 to 34.80 V 57.60 to 67.20 V
Remote control Option R (external drive power required)
Item Specification
Module code B C D
Slots used 1 1 1
Output Power 15 W 15.6 W 15.6 W
Voltage / current 5 V 3 A 12 V 1.3 A 24 V 0.65 A
Voltage adjustment range 4.50 to 5.50 V 10.80 to 13.20 V 21.60 to 26.40 V
Built-in functions Overcurrent protection Activates at 105% min of rated current (automatic recovery, intermittent overcurrent).
Overvoltage protection 5.75 to 8.00 V 13.80 to 19.20 V 28.80 to 38.40 V
Remote control Option R (external drive power required)
Item Specification
Module code G H J K L M
Slots used 1 1 1 1 1 1
Output Power 16.5 W 25 W 30 W 31.4 W 31.2 W 31.2 W
Voltage / current 3.3 V
5 A		 5 V
5 A		 12 V
2.5 A		 16.5 V
1.9 A		 24 V
1.3 A		 48 V
0.65 A
Voltage adjustment range 2.97 to 3.63 V 4.50 to 5.50 V 10.80 to 13.20 V 14.85 to 18.15 V 21.60 to 26.40 V 43.20 to 52.80 V
Built-in functions Overcurrent protection Activates at 105% min of rated current (automatic recovery, intermittent overcurrent).
Overvoltage protection 4.00 to 5.25 V 5.75 to 7.00 V 13.80 to 16.80 V 18.90 to 23.10 V 28.80 to 34.80 V 57.60 to 67.20 V
Remote control Option R (external drive power required)
Item Specification
Module code E F P Q
Slots used 1 1 1 1
Output Power 14.4 W 15 W 16.8 W 21 W
Voltage / current ±12 V 0.6 A ±15 V 0.5 A ±12 V 0.7 A ±15 V 0.7 A
Voltage adjustment range 10.80 to 13.20 V 13.50 to 16.50 V 10.80 to 13.20 V 13.50 to 16.50 V
Built-in functions Overcurrent protection Activates at 105% min of rated current (automatic recovery, intermittent overcurrent).
Overvoltage protection 13.80 to 19.20 V 17.25 to 24.00 V 14.40 to 18.00 V 18.00 to 22.50 V
Remote control Option R (external drive power required)
