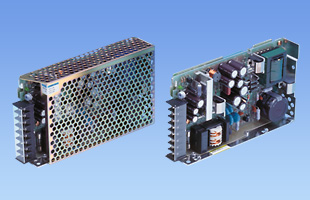

RMC50A

RMCseries

RMC15A
RMC30A
RMC50A

Production discontinued (September 29, 2017)
UL60950-1
C-UL Complies with DEN-AN

Rated Input: AC85 - 132V 1Φ
Rated Output Wattage: 50W
Rated Output Voltage: +5V/+12V/-12V,+5V/+15V/-15V

• Small size
• Built-in inrush current, overcurrent and overvoltage protection circuits
• V1 isolated from V2 and V3
• Stabilized output voltage (V1, V2, V3)

Free warranty period 3-year

Technical features

Harness

Type	Model number	Description	PDF	DXF

Instruction manual
Optional parts (sold separately)

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

RMC⁽¹⁾ 50A⁽²⁾ - 1⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Output voltage combination
(4) Optional
  C: with Coating
  G: Low leakage current
  J: Connector type
  N: with Cover

Data sheet download

RMC50A specifications (overview)

Product		RMC50A-1	RMC50A-2
Input voltage		AC85 - 132V 1Φ or DC110 - 170V	AC85 - 132V 1Φ or DC110 - 170V
Output	Wattage	49W (Peak: 55W)	50.5W
	Voltage・Current	V1: +5V 5.0A V2: +12V 1.5A (Peak: 2A) V3: -12V 0.5A	V1 :+5V 5.0A V2 :+15V 1.2A V3 :-15V 0.5A
	Voltage variable range	5.00 - 5.25VFixedFixed	5.00 - 5.25VFixedFixed
Applicable standards	Safety Certifications	UL60950-1, C-UL Complies with DEN-AN
Structure	External dimensions (W×H×D)	31x93x155mm
Structure	Cooling method	Convection
Technical data	Characteristic data
	Estimated life data
	EMC data	-	-
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
