SFLSseries

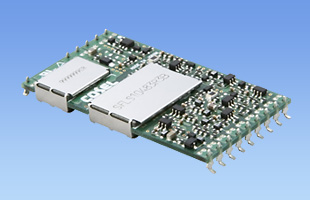

SFLS10

  • Production discontinued (May 20, 2024)
  • UL60950-1
  • C-UL (CSA60950-1)
  • EN62368-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input: DC36 - 76V
Rated Output Wattage: 10W
Rated Output Voltage: 2.5V,3.3V,5V

• Low profile SMD mounting type
• Parallel operation is possible
• Built-in remote ON/OFF, alarm
• Built-in Power ready/Sequence control

Free warranty period 5-year

Technical features

Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SFL(1)  S(2)  10(3)  48(4)  3R3(5)  B(6)


(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
 48: DC36 - 76V
(5) Output voltage
(6) Mounting type
  B: SMD
Data sheet download

SFLS10 specifications (overview)

Product SFLS10482R5 SFLS10483R3 SFLS104805
Input voltage DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 7.5W 9.9W 10.0W
Voltage・Current 2.5V 3A 3.3V 3A 5V 2A
Voltage variable range
Applicable standards Safety Certifications UL60950-1, C-UL (CSA60950-1) , EN62368-1
Structure External dimensions (W×H×D) 38.7x4.2x22.4mm [1.52x0.166x0.88 inches]
Cooling method Convection
Technical data Characteristic data
Estimated life data - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
