SNDBS400B

SNDBSseries

SNDBS400B
SNDBS700B

Production discontinued (November 20, 2023)
UL60950-1
C-UL
EN62368-1
Complies with DEN-AN

Rated Input: DC200 - 400V
Rated Output Wattage: 400W
Rated Output Voltage: 3.3V,5V,7.5V,12V，15V,18V,24V,28V

• Compact DC-DC converter, SNDBS series includes DBS series
• Conduction cooling is possible by the combination with SNDPF and SNDPG series
• Inverter operating monitoring (IOG)

Free warranty period 3-year

Technical features

Adjustable Output Voltage
Remote Control
Remote sensing
Alarm
Parallel Operation

<p>Harness</p>

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

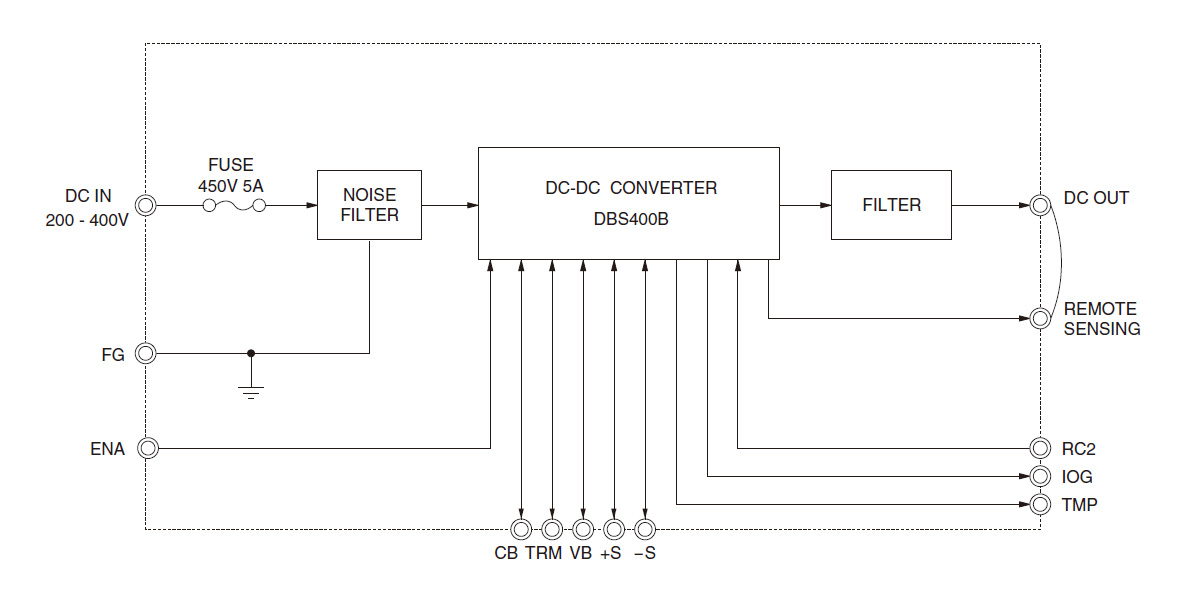

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SNDB⁽¹⁾ S⁽²⁾ 400⁽³⁾ B⁽⁴⁾ 03⁽⁵⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) B: DC200V - 400V
(5) Output voltage

Catalog download

SNDBS400B specifications (overview)

Product		SNDBS400B03	SNDBS400B05	SNDBS400B07	SNDBS400B12	SNDBS400B15	SNDBS400B18	SNDBS400B24	SNDBS400B28
Input voltage		DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V
Output	Wattage	264W	400W	405W	408W	405W	396W	408W	406W
	Voltage・Current	3.3V 80A	5V 80A	7.5V 54A	12V 34A	15V 27A	18V 22A	24V 17A	28V 14.5A
	Voltage variable range	2.97 - 3.63V	4.50 - 5.50V	6.75 - 8.25V	10.80 - 13.20V	13.50 - 16.50V	16.20 - 19.80V	21.60 - 26.40V	25.20 - 30.80V
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1,Complies with DEN-AN
Structure	External dimensions (W×H×D)	89x44.5x222mm [3.51x1.75x8.75 inches]
Structure	Cooling method	Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
