SNDBS700B

SNDBSseries

SNDBS400B
SNDBS700B

Active (NRND)
UL60950-1
C-UL
EN62368-1
Complies with DEN-AN

Rated Input: DC200 - 400V
Rated Output Wattage: 700W
Rated Output Voltage: 12V,24V,28V,36V,48V

• Compact DC-DC converter, SNDBS series includes DBS series
• Conduction cooling is possible by the combination with SNDPF and SNDPG series
• Inverter operating monitoring (IOG)

Free warranty period 3-year

Technical features

Adjustable Output Voltage
Remote Control
Remote sensing
Alarm
Parallel Operation

<p>Harness</p>

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

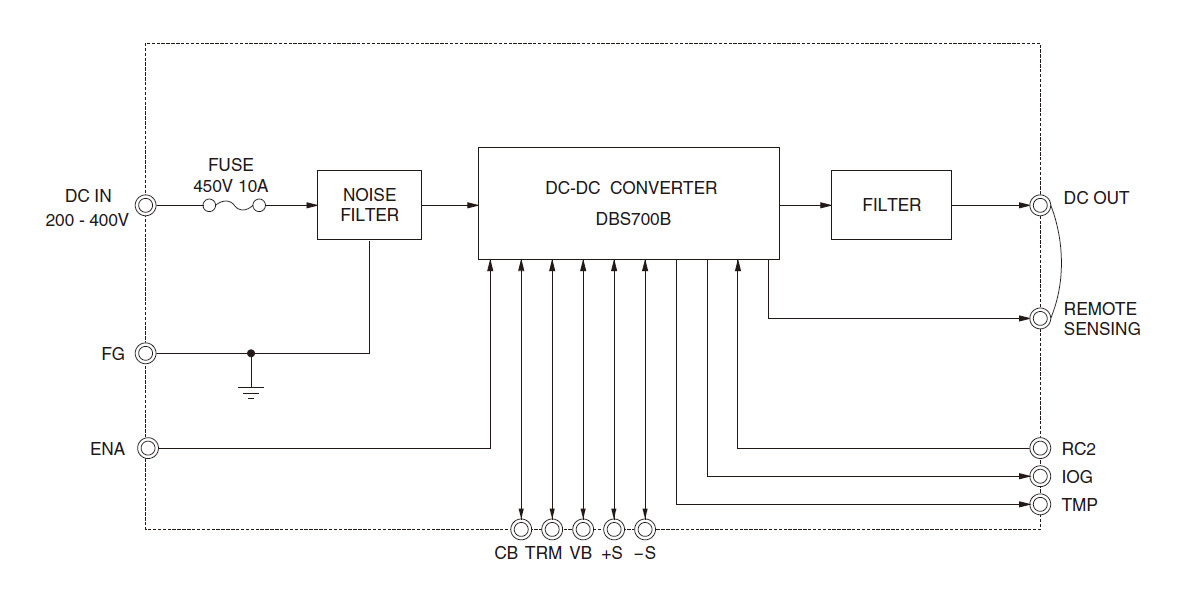

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SNDB⁽¹⁾ S⁽²⁾ 700⁽³⁾ B⁽⁴⁾ 03⁽⁵⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) B: DC200V - 400V
(5) Output voltage

Data sheet download

SNDBS700B specifications (overview)

Product		SNDBS700B12	SNDBS700B24	SNDBS700B28	SNDBS700B36	SNDBS700B48
Input voltage		DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V	DC200 - 400V
Output	Wattage	696W	696W	700W	702W	696W
	Voltage・Current	12V 58A	24V 29A	28V 25A	36V 19.5A	48V 14.5A
	Voltage variable range	10.80 - 13.20V	21.60 - 26.40V	25.20 - 30.80V	32.40 - 39.60V	43.20 - 52.80V
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1,Complies with DEN-AN
Structure	External dimensions (W×H×D)	89x44.5x222mm [3.51x1.75x8.75 inches]
Structure	Cooling method	Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
