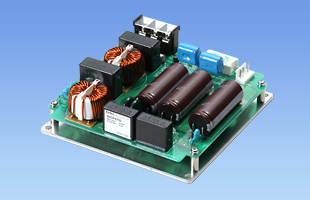

SNDPG750

SNDPGseries

SNDPG750

Active (NRND)
UL60950-1
C-UL
EN62368-1
Complies with DEN-AN

Rated Input: AC85 - 264V 1Φ/AC170 - 264V 1Φ
Rated Output Wattage: 500W, 750W
Rated Output Voltage: 360V

• Compact AC-DC converter, SNDPG series includes DPG series
• Conduction cooling is possible by the combination with SNDBS and SNDHS series
• Harmonic attenuator (Complies with IEC61000-3-2)
• Enable signal (ENA)

Free warranty period 3-year

Release year: 2011

Technical features

Remote Control

Harness

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model
3D CAD data	STEP	Standard model
3D CAD data	IGES	Standard model

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SNDPG⁽¹⁾ 750⁽²⁾ - □⁽³⁾

(1) Series name
(2) Output power
  750: 750W (ACIN  200V)
(3) Optional
  C: with Coating
  R: with Remote ON/OFF
  (Enable signal)

Please refer to Instruction manual 7.

Data sheet download Instruction manual

SNDPG750 specifications (overview)

Product		SNDPG750
Input voltage		AC85 - 264V, AC170 - 264
Output	Wattage	500W, 750W
	Voltage・Current	360V
	Voltage variable range
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1, Complies with DEN-AN
Structure	External dimensions (W×H×D)	125x44.5x127mm [4.92x1.75x5.0 inches]
Structure	Cooling method	Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
