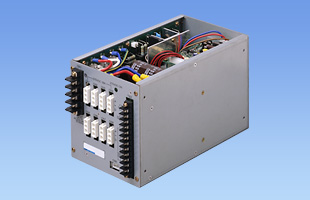

STA5000T

STAseries

STA5000T

Production discontinued (May 31, 2023)
UL60950-1
C-UL (CSA60950-1)
IEC60950-1

Rated Input: AC170 - 264V 3Φ
Rated Output Wattage: 5000W
Rated Output Voltage: DC230-370 (Changes depending on the input voltage)

• Equipped with improved power factor, open phase detection and overheating detection circuits
• Can optionally feature sequence unit for DC-DC converter ON/OFF control
• Conducted noise EN55022 class B (When combined with recommended filter + DBS series unit)
• Small and light weight

Free warranty period 3-year

Technical features

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

Block diagram

STA⁽¹⁾ 5000⁽²⁾ T⁽³⁾ - □⁽⁴⁾

(1) Series name
(2) Output wattage
(3) Triple input phase
(4) Optional
R: with Sequence unit

Data sheet download

STA5000T specifications (overview)

Product		STA5000T
Input voltage		AC170 - 264V 3Φ（Rated Input Voltage : AC200V）
Output	Wattage	5000W
	Voltage・Current	DC230 - 370V
	Voltage variable range
Applicable standards	Safety Certifications	UL60950-1, C-UL (CSA60950-1) , IEC60950-1
Structure	External dimensions (W×H×D)	131.5x144x250mm (without terminal block and screw)
Structure	Cooling method	Forced air (Require external fan)
Technical data	Characteristic data
	Estimated life data
	EMC data
	Reliability
	MTBF

* For further information and how to use, please see in Cosel product catalog.
