SUCSseries

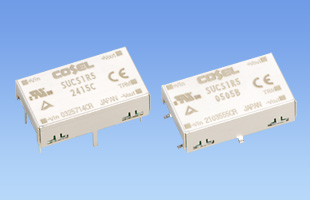

SUCS1R5

  • Active
  • UL60950-1
  • C-UL
  • EN62368-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: 3.3V,5V,12V,15V

• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SUC(1)  S(2)  1R5(3)  12(4)  05(5)  B(6)  P(7)  -  □(8)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  C: with Coating (only DIP type)

Catalog download

SUCS1R5 specifications (overview)

Product SUCS1R5053R3 SUCS1R50505 SUCS1R50512 SUCS1R50515 SUCS1R5123R3 SUCS1R51205 SUCS1R51212 SUCS1R51215 SUCS1R5243R3 SUCS1R52405 SUCS1R52412 SUCS1R52415 SUCS1R5483R3 SUCS1R54805 SUCS1R54812 SUCS1R54815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W 1.32W 1.5W 1.56W 1.5W
Voltage・Current 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A 3.3V 0.4A 5V 0.3A 12V 0.13A 15V 0.1A
Voltage variable range Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards Safety Certifications UL60950-1, C-UL, EN62368-1
Structure External dimensions (W×H×D) 22.4x7.0x13.2mm [0.88x0.28x0.52 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data - - - - - - - -
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
