SUCW1R5

SUCWseries

SUCW1R5
SUCW3
SUCW6
SUCW10

Active
UL60950-1
C-UL
EN62368-1

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: ±12V (+24）,±15V (+30）

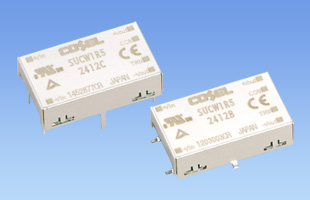

• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

Adjustable Output Voltage
Remote Control

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SUC⁽¹⁾ W⁽²⁾ 1R5⁽³⁾ 12⁽⁴⁾ 12⁽⁵⁾ B⁽⁶⁾ P⁽⁷⁾ - □⁽⁸⁾

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  C: with Coating (only DIP type)

Catalog download

SUCW1R5 specifications (overview)

Product		SUCW1R50512	SUCW1R50515	SUCW1R51212	SUCW1R51215	SUCW1R52412	SUCW1R52415	SUCW1R54812	SUCW1R54815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC36 - 76V	DC36 - 76V
Output	Wattage	1.56W	1.5W	1.56W	1.5W	1.56W	1.5W	1.56W	1.5W
	Voltage・Current	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A
	Voltage variable range	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1
Structure	External dimensions (W×H×D)	22.4x7.0x13.2mm [0.88x0.28x0.52 inches]
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-
	EMC data	-		-		-		-
	Reliability
	MTBF
