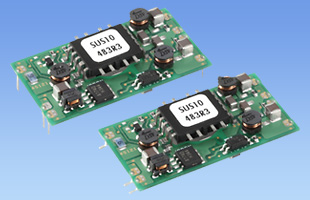

SUS10

SUSseries

SUS1R5
SUS3
SUS6
SUS10

Active
UL60950-1
C-UL
EN62368-1

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V,5V,12V,15V

• SMD mounting type and through-hole mounting type
• High efficiency (synchronous rectifier circuit)
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF (SU/SUC 3, 6, 10)
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

Adjustable Output Voltage
Remote Control

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SU⁽¹⁾ S⁽²⁾ 10⁽³⁾ 12⁽⁴⁾ 05⁽⁵⁾ B⁽⁶⁾ P⁽⁷⁾ - □⁽⁸⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  G: Capacitor between Input and Output is removed.

Data sheet download

SUS10 specifications (overview)

Product		SUS10053R3	SUS100505	SUS100512	SUS100515	SUS10123R3	SUS101205	SUS101212	SUS101215	SUS10243R3	SUS102405	SUS102412	SUS102415	SUS10483R3	SUS104805	SUS104812	SUS104815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC18 - 36V	DC36 - 76V	DC36 - 76V	DC36 - 76V	DC36 - 76V
Output	Wattage	8.58W	10W	10.8W	10.5W	8.58W	10W	12W	12W	8.58W	10W	12W	12W	8.58W	10W	12W	12W
	Voltage・Current	3.3V 2.6A	5V 2A	12V 0.9A	15V 0.7A	3.3V 2.6A	5V 2A	12V 1A	15V 0.8A	3.3V 2.6A	5V 2A	12V 1A	15V 0.8A	3.3V 2.6A	5V 2A	12V 1A	15V 0.8A
	Voltage variable range	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1
Structure	External dimensions (W×H×D)	39.2x6.5x21.0mm [1.54x0.26x0.83 inches]
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
	EMC data	-			-	-			-	-			-	-			-
	Reliability
	MTBF
