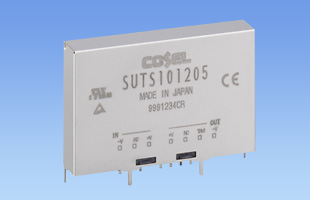

SUTSseries

SUTS10

  • Active (NRND)
  • UL60950-1
  • C-UL
  • EN62368-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 10W
Rated Output Voltage: 3.3V,5V,12V,15V

• High efficiency
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SUT(1)  S(2)  10(3)  12(4)  05(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Data sheet download

SUTS10 specifications (overview)

Product SUTS10053R3 SUTS100505 SUTS100512 SUTS100515 SUTS10123R3 SUTS101205 SUTS101212 SUTS101215 SUTS10243R3 SUTS102405 SUTS102412 SUTS102415 SUTS10483R3 SUTS104805 SUTS104812 SUTS104815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 8.58W 10W 10.8W 10.5W 8.58W 10W 12W 12W 8.58W 10W 12W 12W 8.58W 10W 12W 12W
Voltage・Current 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A
Voltage variable range Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards Safety Certifications UL60950-1, C-UL, EN62368-1
Structure External dimensions (W×H×D) 45.2x29.3x9.15mm [1.78x1.15x0.36 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF

* For further information and how to use, please see in Cosel product catalog.
