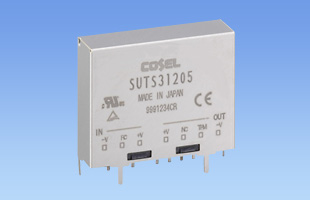

SUTSseries

SUTS3

  • Active (NRND)
  • UL60950-1
  • C-UL
  • EN62368-1
  • RoHS
    UL・C-UL
    TUV
    CE
    UKCA
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 3W
Rated Output Voltage: 3.3V,5V,12V,15V

• High efficiency
• Built-in overcurrent protection circuits
• Built-in remote ON/OFF
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

  • Adjustable Output Voltage
  • Remote Control
Type Model number Description PDF DXF
Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data DXF Standard model
3D CAD data STEP Standard model
IGES Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SUT(1)  S(2)  3(3)  12(4)  05(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Data sheet download

SUTS3 specifications (overview)

Product SUTS3053R3 SUTS30505 SUTS30512 SUTS30515 SUTS3123R3 SUTS31205 SUTS31212 SUTS31215 SUTS3243R3 SUTS32405 SUTS32412 SUTS32415 SUTS3483R3 SUTS34805 SUTS34812 SUTS34815
Input voltage DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V DC36 - 76V
Output Wattage 1.98W 3W 3W 3W 1.98W 3W 3W 3W 1.98W 3W 3W 3W 1.98W 3W 3W 3W
Voltage・Current 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A 3.3V 0.6A 5V 0.6A 12V 0.25A 15V 0.2A
Voltage variable range Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards Safety Certifications UL60950-1, C-UL, EN62368-1
Structure External dimensions (W×H×D) 30.0x23.4x9.15mm [1.18x0.92x0.36 inches]
Cooling method Convection/Forced air
Technical data Characteristic data
Estimated life data - - - - - - - - - - - - - - - -
EMC data
Reliability
MTBF
