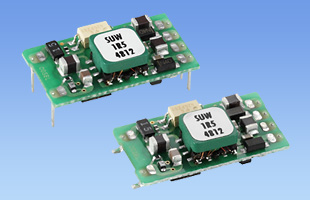

SUW1R5

SUWseries

SUW1R5
SUW3
SUW6
SUW10

Active
UL60950-1
C-UL
EN62368-1

Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V
Rated Output Wattage: 1.5W
Rated Output Voltage: ±12V (+24）,±15V (+30）

• SMD mounting type and through-hole mounting type
• High efficiency
• Built-in overcurrent protection circuits
• High reliability: not built-in aluminum and tantalum electrolytic capacitor

Free warranty period 5-year

Technical features

Adjustable Output Voltage
Remote Control

Type	Model number	Description	PDF	DXF

Instruction manual

*Some documents may not be listed. Please contact us for more details.

CAD data download

CAD data	DXF	Standard model

Block diagram

Safety certification
EU Declaration of Conformity
UK Declaration of Conformity

SU⁽¹⁾ W⁽²⁾ 1R5⁽³⁾ 12⁽⁴⁾ 12⁽⁵⁾ B⁽⁶⁾ P⁽⁷⁾

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)

Catalog download

SUW1R5 specifications (overview)

Product		SUW1R50512	SUW1R50515	SUW1R51212	SUW1R51215	SUW1R52412	SUW1R52415	SUW1R54812	SUW1R54815
Input voltage		DC4.5 - 9V	DC4.5 - 9V	DC9 - 18V	DC9 - 18V	DC18 - 36V	DC18 - 36V	DC36 - 76V	DC36 - 76V
Output	Wattage	1.56W	1.5W	1.56W	1.5W	1.56W	1.5W	1.56W	1.5W
	Voltage・Current	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A	±12V (+24V) 0.065A	±15V (+30V) 0.05A
	Voltage variable range	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister	Fixed (TRM pin open) Available to adjust ±5% by external variable resister
Applicable standards	Safety Certifications	UL60950-1, C-UL, EN62368-1
Structure	External dimensions (W×H×D)	21.4x6.5x12.2mm [0.84x0.26x0.48 inches]
Structure	Cooling method	Convection/Forced air
Technical data	Characteristic data
	Estimated life data	-	-	-	-	-	-	-	-
	EMC data	-		-		-		-
	Reliability
	MTBF
